Author Topic: Twin Cylinder .308 (Read 6699 times))

QVTom · « **Reply #40 on:** February 26, 2015, 05:20:48 PM »

Quote from: sixshootertexan on February 03, 2015, 01:47:35 PM

This gives me a full 1 1/2" of bolt movement and a full 60* of bolt throw all hidden under the breech. Also gives me 7/8" of bullet loading space.

This is brilliant! Stays clean, looks clean and out of sight. Very nice.

Tom

sixshootertexan · « **Reply #41 on:** March 07, 2015, 06:33:19 PM »

Thanks Tom.

I reworked the leade and bullets load much easier. Test 5 of each weight. Then changed hammer spring to a 10lbs one. Using the 10lbs I shot a string using the 79gr. Then another with 1 turn of preload.
110gr
840
853
856
854
848

95gr
920
917
910
899
889

79gr
986
976
971
959
948

79gr with 10lbs spring
889
894
901
896
911
909
917
911
903
486 user error
897
886
878
870
859
848

79gr with 10lbs spring and 1 turn of preload
938
936
941
932
930
920
918
905
897
884

sixshootertexan · « **Reply #42 on:** March 07, 2015, 06:34:08 PM »

Video of the test string using the 110gr bullets.

rsterne · « **Reply #43 on:** March 07, 2015, 07:23:23 PM »

Original hammer spring looks good for a hunting load with the 110 gr.... 179 FPE peak, tight 2% ES over 5 shots.... As the bullets get lighter, it ends up being first shot fastest....

I also like the first string with the 79 gr. and the 10 lbs. spring, it starts down only 3% below the peak (917 fps - 148 FPE) and gives you 12 shots within 4% ES.... A fraction under 1 turn of preload would give you a 2% string of 6 shots at 153 FPE.... but unless you need the tight ES and extra 20 fps for that last bit of range, I think the 12 shot string would be my choice.... probably uses a lot less air, too....

Bob

moorepower · « **Reply #44 on:** April 09, 2015, 08:55:51 PM »

Need an update!

sixshootertexan · « **Reply #45 on:** April 20, 2015, 09:25:44 PM »

Well life has been getting in the way. I got all the aluminum anodized. I just ordered a die for chasing the threads on one of the couplings that I dinged a thread on.

crosman999 · « **Reply #46 on:** April 20, 2015, 09:29:21 PM »

Very nice design! Impressive,can't wait to see it shoot

sixshootertexan · « **Reply #47 on:** May 06, 2015, 07:44:54 PM »

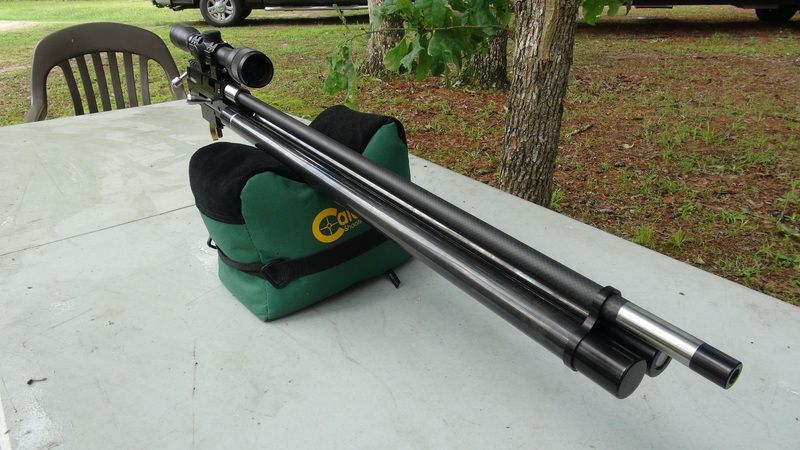

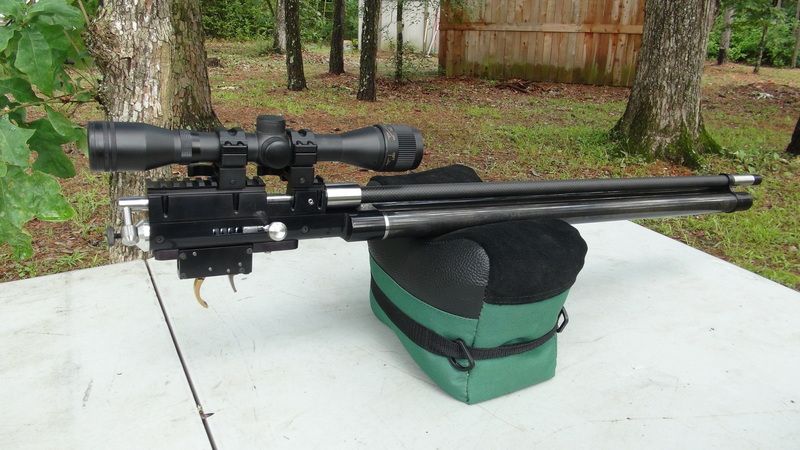

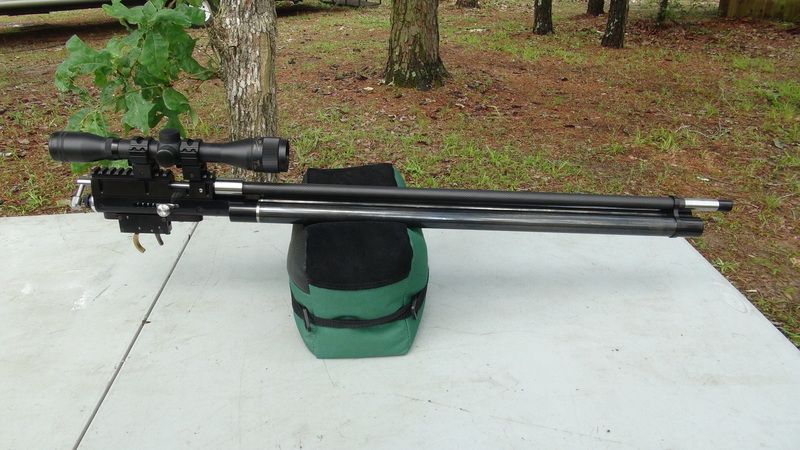

Ok finally got the final machining done. Aluminum parts are anodized and the steel tubes are blued. I'm not happen with the bluing. It's all splotched up. When I get some extra money I'll order some more of the Oxpho-blue from Brownells and redo it. I twice baked the Carbonfiber tube to the barrel using Loctite 638 per Bob Sterne's write up. Final assembly is done and now I need to find the time to start the stock.

YEMX · « **Reply #48 on:** May 06, 2015, 08:19:16 PM »

Looks like she's coming along, real well!!

the1stkim · « **Reply #49 on:** May 06, 2015, 09:47:05 PM »

That is an absolute work of art! I can't stop looking at this thread.

sixshootertexan · « **Reply #50 on:** May 12, 2015, 08:44:55 PM »

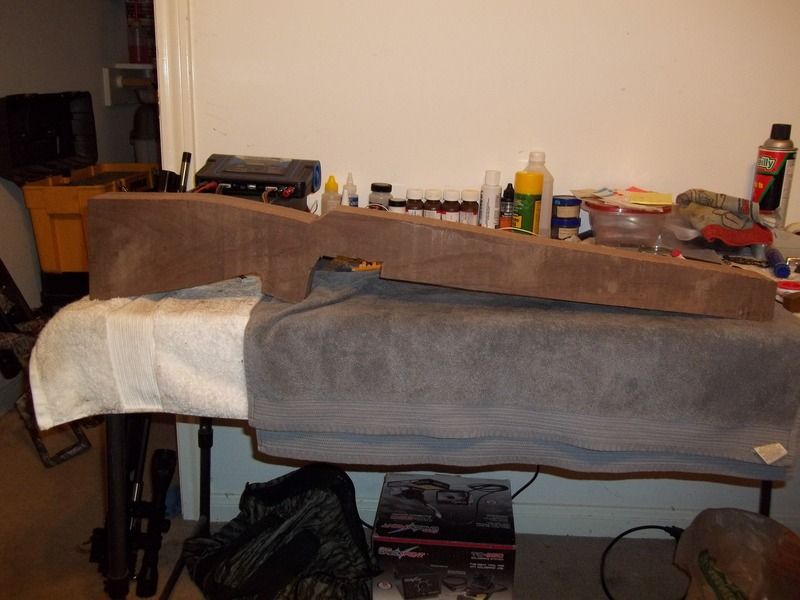

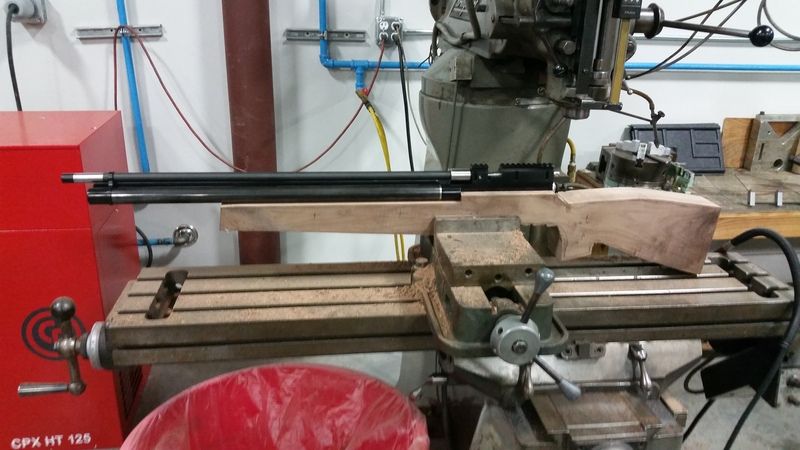

I got the stock blanked out. Hoping I'm able to inlet it this weekend.

sixshootertexan · « **Reply #51 on:** May 16, 2015, 01:15:43 PM »

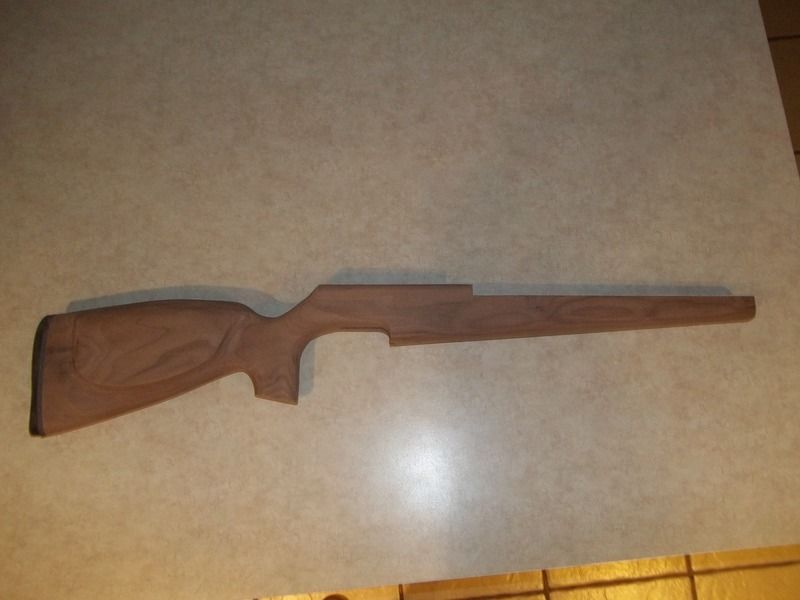

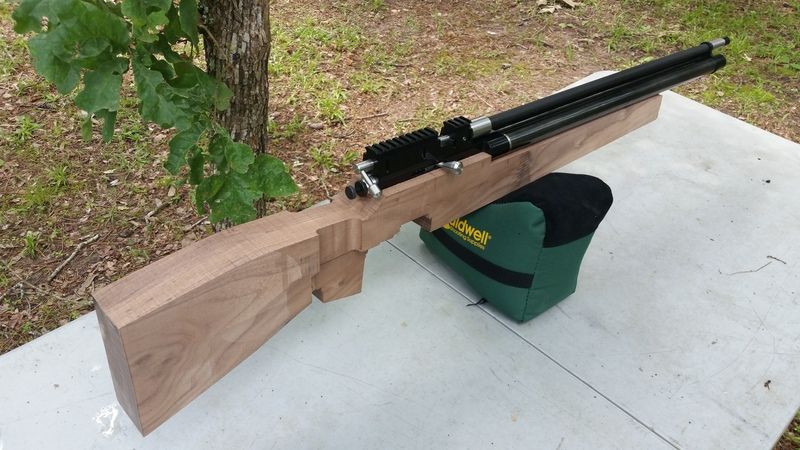

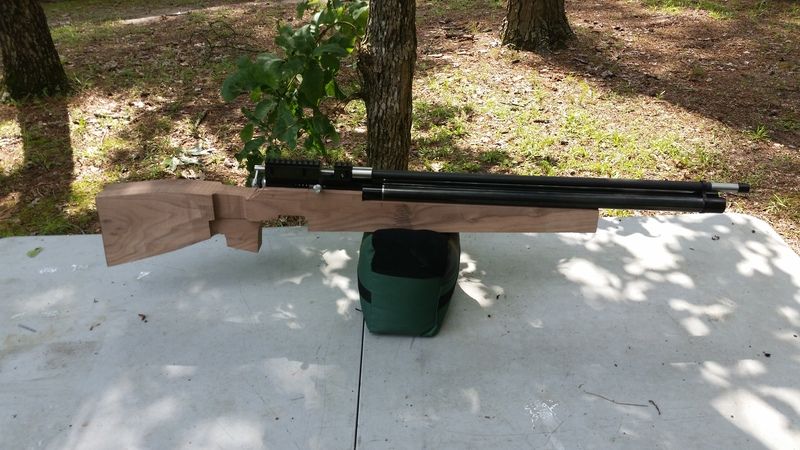

Got the inlet done today and roughed out some of the thickness'.

sixshootertexan · « **Reply #52 on:** May 24, 2015, 10:13:08 PM »

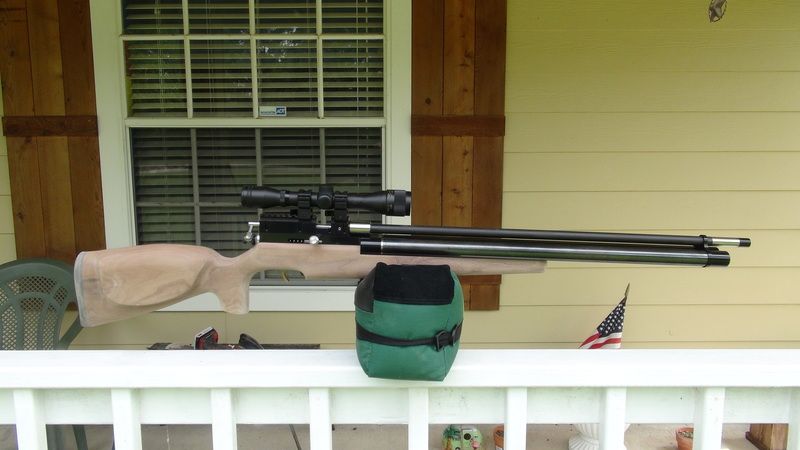

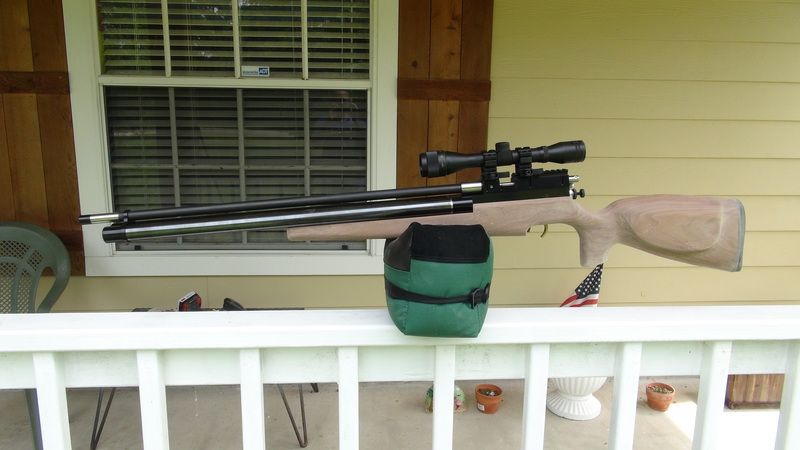

I got o lot of the shaping done today. Lots of sanding and blending to do yet.

Bwalton · « **Reply #53 on:** May 24, 2015, 10:56:41 PM »

Where the heck have I been to miss this thread

Rick very nice design! awesome job....now lets get them into production I want one

sixshootertexan · « **Reply #54 on:** May 25, 2015, 05:50:45 PM »

Thanks Bwalton. I can't keep up with all the threads on this website either.
Well I've done all the damage I can do this weekend. I need to make a trigger guard and a grip cap.

Bwalton · « **Reply #55 on:** May 25, 2015, 06:43:50 PM »

Very nice

Matt15 · « **Reply #56 on:** May 26, 2015, 03:02:35 PM »

Quote from: sixshootertexan on May 25, 2015, 05:50:45 PM

Thanks Bwalton. I can't keep up with all the threads on this website either.
Well I've done all the damage I can do this weekend. I need to make a trigger guard and a grip cap.

That looks sweet!!!!!

Pellethuntr · « **Reply #57 on:** May 26, 2015, 07:30:14 PM »

That is some beautiful machine work Ricky!

Very nice lines

moorepower · « **Reply #58 on:** May 31, 2015, 06:32:07 PM »

UNREAL!

sixshootertexan · « **Reply #59 on:** May 31, 2015, 07:39:02 PM »

Ok I just want to thank everyone again that gave me technical help here on GTA. Also anyone one that has commented on the thread that I have missed.

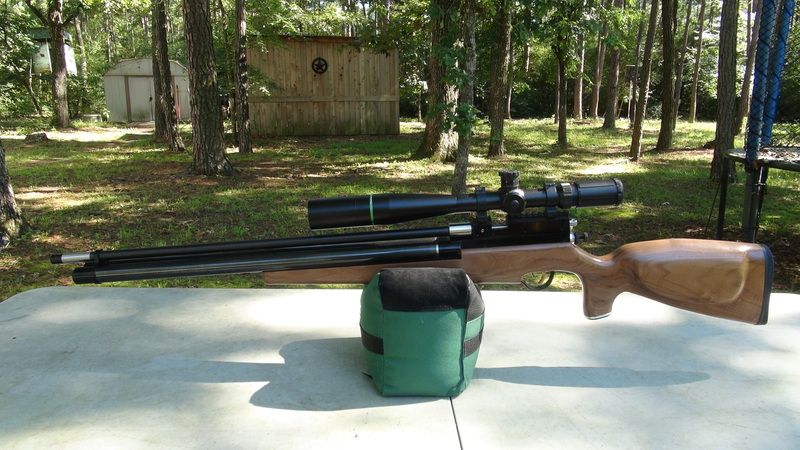

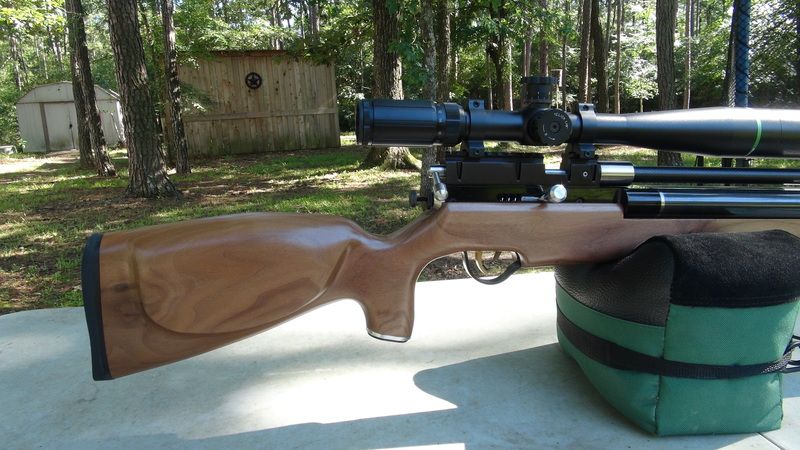

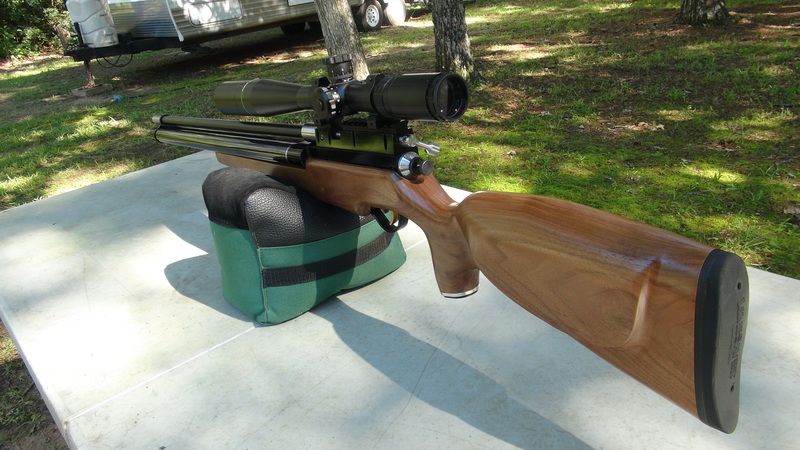

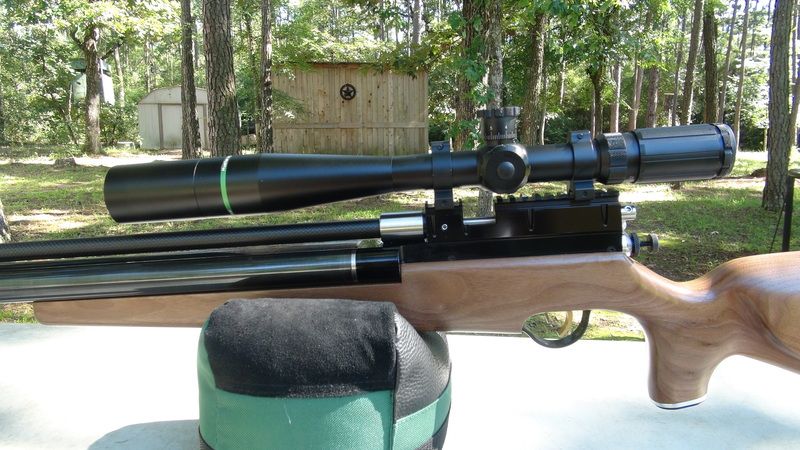

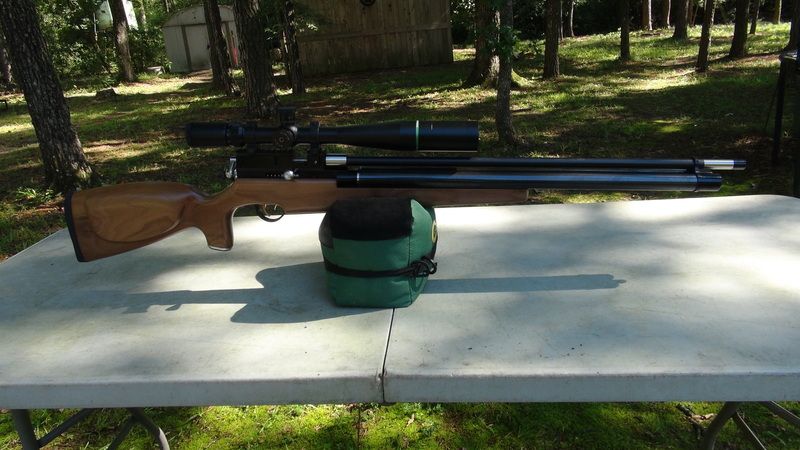

It's complete except to sight it in. I took the Mueller off my .25 to use on this build and will get something else for it.
