Author Topic: Twin Cylinder .308 (Read 6658 times))

sixshootertexan · « **Reply #20 on:** February 07, 2015, 03:45:22 PM »

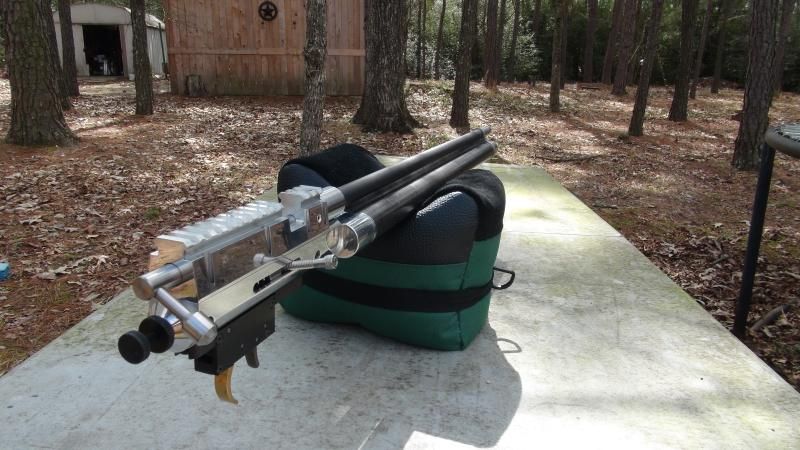

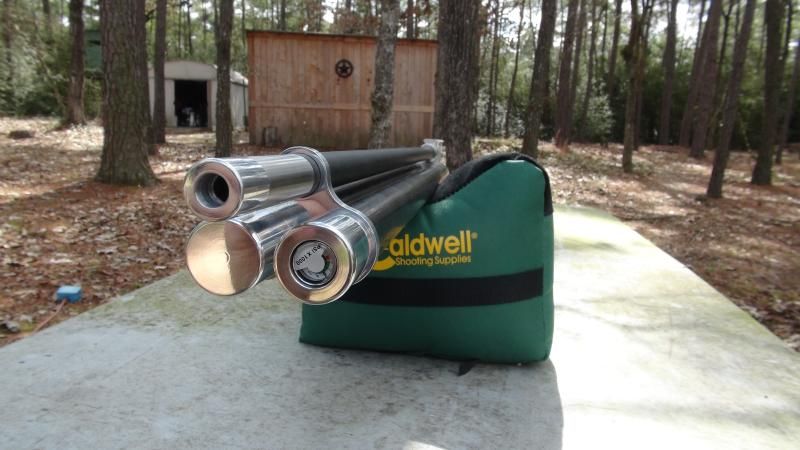

Well had a somewhat successful fill today. I filled to 500psi yesterday and had a leak on the poppet. Took the valve out this morning and relapped the seat. I tried to charge it again and only had 2000psi in my tank, so off to get tanks filled. I came back and hooked the tank back up but my regulator for some reason is only putting out 2650psi. Now I have to wait until my mold gets here in another 2 weeks before I test fire it, so it can set and see if it leaks until then. Since I was already outside I took some more pics of it with my HD camera. Guess I can start designing and building the stock while I wait.

YEMX · « **Reply #21 on:** February 07, 2015, 03:57:20 PM »

Looking EXCELLENT!!!!

Monkeydad1969 · « **Reply #22 on:** February 07, 2015, 04:00:15 PM »

That is BADBUTT!!!!!

Matt15 · « **Reply #23 on:** February 09, 2015, 10:49:49 PM »

Nice!!!! Will you hunt with it?

sixshootertexan · « **Reply #24 on:** February 10, 2015, 12:40:14 AM »

Thanks. Yes I will hunt with it if I have a chance to.

csdilligaf · « **Reply #25 on:** February 13, 2015, 09:01:22 PM »

Sixshooter, it really looks good so far. I had been kicking around the idea of a barrel nut to hold the barrel in and a taper on the barrel that fit into a matching taper in the action. I was thinking with a Morse taper of sorts. I saw it on a long range multi caliber rifle once at the gun show. Is that what you did or is it a very nice slip fit? Great work, I am looking forward to the progress.

Chip Smith

sixshootertexan · « **Reply #26 on:** February 13, 2015, 11:46:46 PM »

Quote from: csdilligaf on February 13, 2015, 09:01:22 PM

Sixshooter, it really looks good so far. I had been kicking around the idea of a barrel nut to hold the barrel in and a taper on the barrel that fit into a matching taper in the action. I was thinking with a Morse taper of sorts. I saw it on a long range multi caliber rifle once at the gun show. Is that what you did or is it a very nice slip fit? Great work, I am looking forward to the progress.

Chip Smith

Thanks.
It's just a slip fit. I tried to utilize a flat and tang for orientation but it didn't work out to good so I just drilled and tapped 3x 8-32 set screws to safely align and secure the barrel. The barrel nut now is just more of a cover than anything else.
PS sorry I have not answered your pm been busy.

sixshootertexan · « **Reply #27 on:** February 14, 2015, 04:21:36 PM »

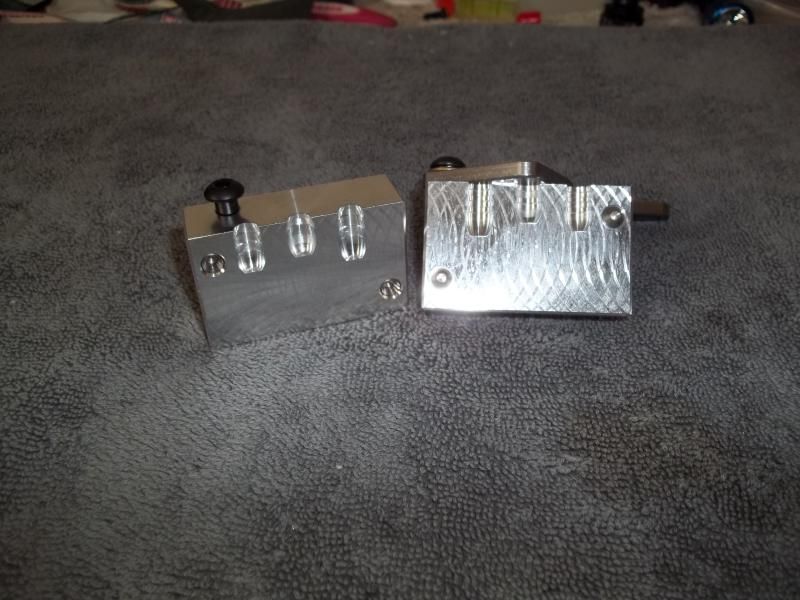

YEA HAW my mold came in today. It only took a week and a half. Accurates website says 3 weeks lead time.

ronbeaux · « **Reply #28 on:** February 14, 2015, 04:30:04 PM »

Thats a bad boy machine there six!

rsterne · « **Reply #29 on:** February 15, 2015, 12:46:27 AM »

Nice looking mold.... three weights of BBT's?....

Bob

Rdsail · « **Reply #30 on:** February 15, 2015, 10:31:30 AM »

I like the 3 weights. Might have to do something like that if I decide to start casting

sixshootertexan · « **Reply #31 on:** February 15, 2015, 11:19:05 AM »

Yes 3 of your boattail designs Bob. As soon as I have my coffee I'm going to start casting some.

William · « **Reply #32 on:** February 15, 2015, 12:02:15 PM »

Nice work, great looking setup

Cant wait to see how she groups... Hope I can place an order

William

sixshootertexan · « **Reply #33 on:** February 15, 2015, 02:38:15 PM »

Thanks

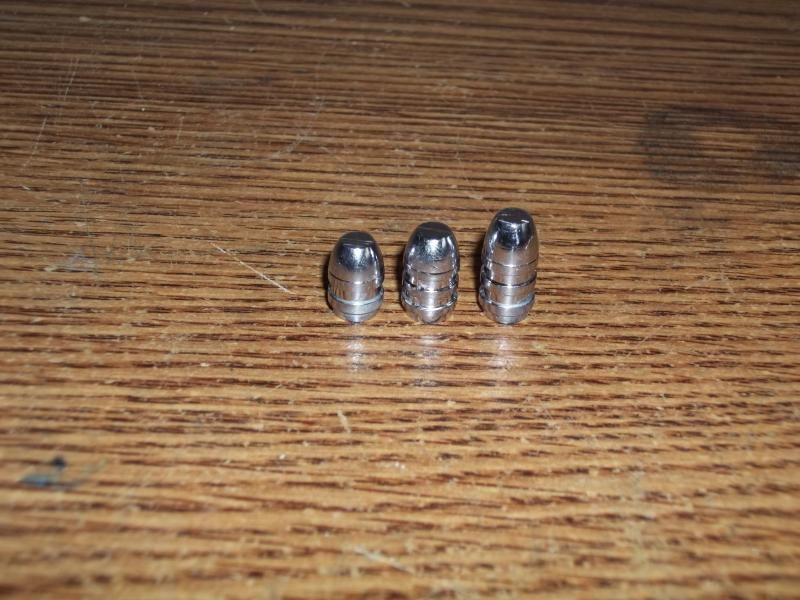

Got some casted but the rain is about to start so I guess I'll have to wait until next weekend to test them.

Monkeydad1969 · « **Reply #34 on:** February 15, 2015, 02:47:04 PM »

Looks nice, guess next weekend it is.

rsterne · « **Reply #35 on:** February 15, 2015, 08:09:27 PM »

Pretty darn good for your first attempt, from what I can see.... I notice you had a bit of weight variation, maybe try squeezing the handles together a bit tighter / more consistently.... that should reduce the variation in weight and diameter to a minimum.... Did you lube the mold pins?.... They may be sticking and/or not broken in.... Veral's pins are notoriously tight and have to wear in before the mold closes properly....

Bob

sixshootertexan · « **Reply #36 on:** February 15, 2015, 08:54:38 PM »

I think it's mostly getting a good fill out. Some of the bands are nice and crisp while others are not.

sixshootertexan · « **Reply #37 on:** February 22, 2015, 05:19:52 PM »

I'm well pleased with the first set of strings out of this build. Got some things that I noticed that need to be worked on but other than that a good first outing. These were 10 shot strings except the 79 I had a user error. Forgot to retract the bolt on the 3rd shot. Roughly 1000psi drop per string. 2800-1800.

79ge BBT
Hi 974
Lo 861
Avg 917
Avg FPE 147.76

95gr BBT
Hi 924
Lo 825
Avg 866
Avg FPE 158.35

110gr BBT
Hi 869
Lo 777
Avg 829
Avg FPE 168.06

Rdsail · « **Reply #38 on:** February 22, 2015, 05:21:54 PM »

Looking great!

Great numbers and power.

Monkeydad1969 · « **Reply #39 on:** February 22, 2015, 05:26:17 PM »

Wow...looking really good. It will be real nice after you work out the bugs.

Joe
