A new model I Dragon Fly to test?

[Nvreloader]

Guys
Here some more info I found on both models of the Dragon Fly I & II, also in both calibers.

Photo's of the DFI pump head, showing all the parts.
https://airgunwarriors.com/community/airgun-talk/that-daffy-dfly-piston/#post-9353

https://airgunwarriors.com/community/airgun-talk/some-dragonfly-mk2-numbers/#post-57059

https://airgunwarriors.com/community/airgun-talk/that-daffy-dfly-piston/paged/1/

https://airgunwarriors.com/community/airgun-talk/results-of-tinkering-with-the-dragonfly-ac-ssp/#post-11475
Tia,
Don

[Back_Roads]

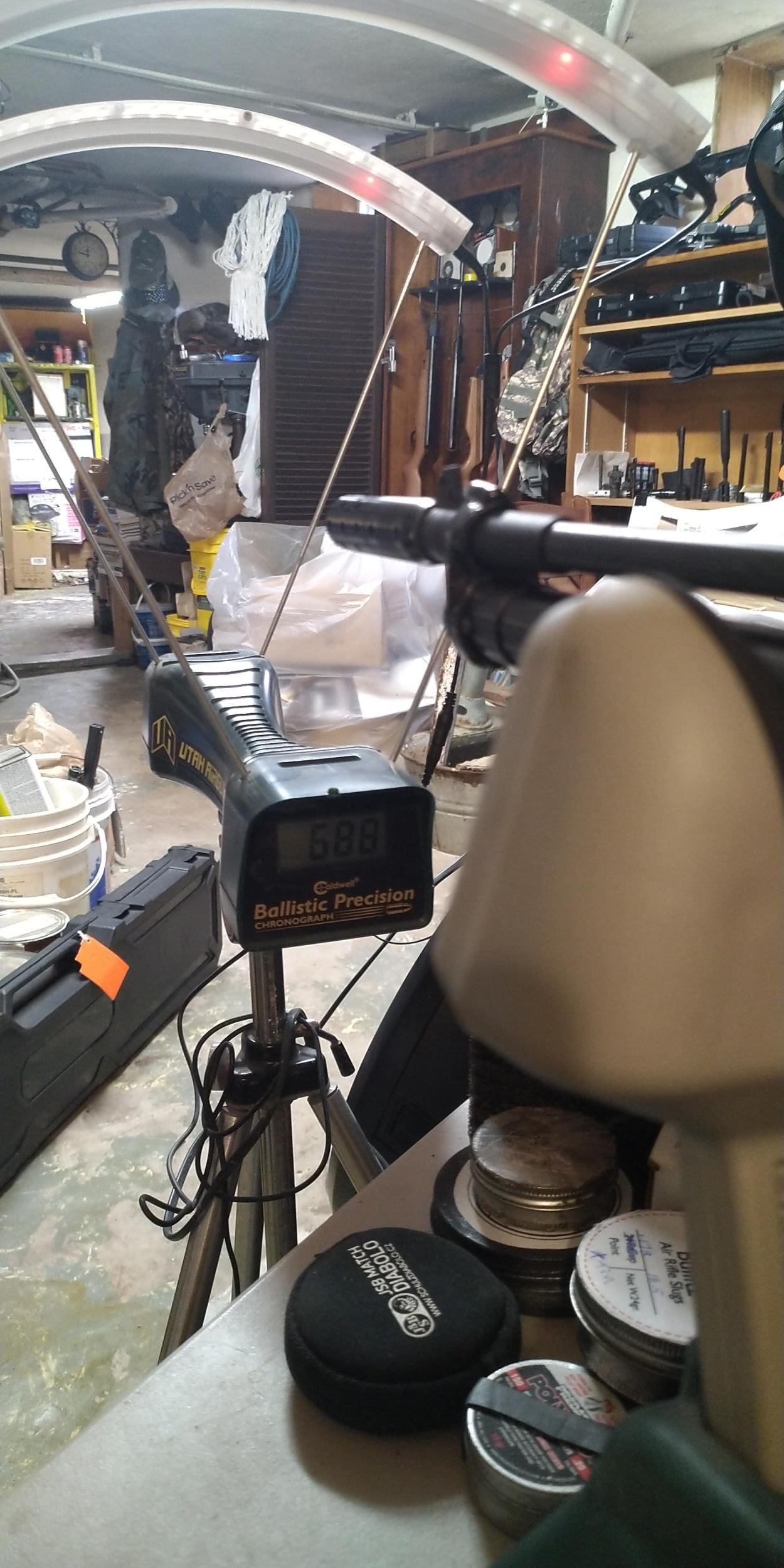

 OK I did a few 8 pump shots over the crony with 17.6gr Normas, 688fps, I was not imagining higher FPS LOL

[splitbeing]

Higher than the mk ii or higher since moding the stock [chuckling]?

[Psipumper]

I have an Artimis lr700  .22 new with no modifications .
620 @ 8 pumps, crosman 14.3 pellets.
I think it’s the same as the dragonfly1.

[Back_Roads]

 Yes they are the same. Mine had a loose pump adjustment that I had to tighten to the proper specs out of the box, never did and valve or hammer spring mods.

[Nvreloader]

BR
Is this rifle a DF 1 or 2, caliber 17 or 22?

Since I have all of the air holes that are .134" thru .136",
but the breech/action hole which is .124".

I think that I'll open It up to .136", and see the results,
as that will give me a good base line to work from.

Here is some of the DF II tests for comparison,
Summary of some of the tests,
the "F" thru H-1 tests are the DF II 22 cal tests,
F & G tests were with tp holes at .145"
H & H1 tests were with TP holes at .156"

The "A" test is for the DF I- 22 cal, OEM STOCK.

     Test       F     G     H    H-1        "A"
1 pump = 269--262--252-236   1. 293.9
2 pumps= 393--377--305-367   2. 396.8
3 pumps= 452--390--383-449   3. 446.1
4 pumps= 479--436--416-495   4. 475.7
5 pumps= 538--488--449-511   5. 511.8
6 pumps= 623--498--524-574   6. 531.4
7 pumps= 646--639--567-597   7. 541.3
8 pumps= 652--754--600-613   8. 561.0
9 pumps= 708--810--633-757* 9. 567.5
10 pumps=728--833--690-813*10. 561.0
The asterisk is the level I am working towards at 10 pumps.

Your thoughts or suggestions......

[avator]

Never had the DF I but I did own the DF II for awhile.
A couple things I didn't like about the gun...
The edges of the wood pump handle were sharp and hard on my hand to pump. But I quickly learned that the pump arm does not need to be completely closed between strokes. That helped.
The other thing was that I was always nervous that I would bend that butterfly linkage. Just seemed to me that it needed to be beefier.

[Back_Roads]

  Don it is a  DF1 .22 17.6 gr Norma pellets.

[Nvreloader]

OK Guys
Here is the 2nd test,
I opened the Breech/action tp hole to .140", The OEM hole was .124"
I could not find my .136" reamer, but it's in the shop some where...

      "B" Test
Crosman 14.3gr pellets used for all tests:
1. No reading, no air retained during pump??
2. 282 fps/86 mps
3. 341 fps/104 mps
4. 433 fps/132 mps
5. 449 fps/137 mps
6. 492 fps/150 mps
7. 528 fps/161 mps
8. 557 fps/170 mps
9. 561 fps/171 mps
10. 531 fps/162 mps
11. 587 fps/179 mps
12. 590 fps/180 mps
13. 600 fps/183 mps
14. 587 fps/179 mps
15. FPS were lower than the 14 pump test
-------------------------------------------------------------------------------------------------
    "A" Test, OEM stock
1. 293.9 fps/89.6 mps
2. 396.8 fps/121 mps
3. 446.1 fps/136 mps
4. 475.7 fps/145 mps
5. 511.8 fps/156 mps
6. 531.4 fps/162 mps
7. 541.3 fps/165 mps
8. 561.0 fps/171 mps
9. 567.5 fps/173 mps
10. 561.0fps/171 mps
11. FPS were lower than the 10 pump test,
No retained air from pumps.
No air leaks.

I don't know what is going on,
I had 1 pump results before and gained nothing over the 10 pumps on the "A" test,

Your thoughts and suggestions....
Tia

[Nvreloader]

BR
Thanks for the info, I didn't relies Norma pellets were that weight,
as I don't have any in my pellet data base.
Tia

[Psipumper]

I disassembled my LR700 today and checked some things and made a few sketches to machine parts.
I am going to drill the transfer path to .170 and valve throat to .196
Undercut the valve stem to.080
There is a counterbore at the air inlet valve hole. Going to plug that and drill.062 hole to reduce headspace.
I measured the valve internal volume at 2.8 cc. I will turn an eighth inch off the threads and chamfer to bump that up to 3.2 cc.
The pump rod is a mess with the rubber donut. Going to press a new piece on the shaft to eliminate that.
The upper section of the pump rod where the link connects is made of plastic on mine so a brass one will replace it.
I see the barrel orings. One of them looks damaged. It came with a couple spares but a source for them would be nice.
We will see but maybe 750 to 800 could be done at 8 pumps.

Good luck on your project .

[Nvreloader]

PSI Pumper
If you can give me the size of O rings you need, I probably have them, and will send them to you, no payback needed.  You have helped me several times. I do have the O rings for the DFY II valves.

This is were I get my O rings, once I figure out the size.
Found the DF II barrel O ring here.

https://www.theoringstore.com/store/index.php?main_page=index&cPath=368_12

Tia,
Don

[Nvreloader]

PSI
If I can ask a question, How do plug a hole in the valve"
I have been using the set screw method, then drill/ream the correct hole as needed.

Tia,
Don

[Psipumper]

PSI
If I can ask a question, How do plug a hole in the valve"
I have been using the set screw method, then drill/ream the correct hole as needed.

Tia,
Don

Lathe turn a piece of  aluminum to .1625 diameter an eighth of an inch long. Drill a .062 hole through it and press it into the valve. You don’t want to have to use excessive pressure pressing it in so the first 1/16 could be .161 diameter.

[avator]

Could you also add a drop of thread locker?

[Nvreloader]

Well,
I found the problem, I tried the rubber glove and rubber band trick,
I found out that there was air leaking past the poppet, even with the tapered poppet end...
So, I remove the valve and lapped it in, button every thing buttoned up and got these results: (it holds air now).

I opened the Breech/action tp hole to .140", The OEM hole was .124"
I could not find my .136" reamer, it's in the shop some where...
Removed the front crushed bb screen in the inlet hole of the valve.

I need to find 81 fps+ = 10 pump test  for 700+ fps average,
and I'll be Plumb Happy with this DF I, 22 cal.

Maybe open all air holes to .140"....?

Your thoughts and suggestions.....
Tia

      "C" Test
Crosman 14.3gr pellets used for all tests:
1. 291 fps/88 mps
2. 367 fps/112 mps
3. 433 fps/132 mps
4. 479 fps/146 mps
5. 521 fps/159 mps
6. 551 fps/168 mps
7. 574 fps/175 mps
8. 593 fps/181 mps
9. 606 fps/185 mps
10. 616 fps/188 mps
11. 629 fps/192 mps
12. 643 fps/196 mps
13. 646 fps/197 mps
14. 659 fps/201 mps
15. 666 fps/203 mps
16. 682 fps/209 mps
17. 688 fps/210 mps
18. FPS were lower than the 17 pump test

      "B" Test = (same as above)
Crosman 14.3gr pellets used for all tests:
1. No reading, no air retained during pump??
2. 282 fps/86 mps
3. 341 fps/104 mps
4. 433 fps/132 mps
5. 449 fps/137 mps
6. 492 fps/150 mps
7. 528 fps/161 mps
8. 557 fps/170 mps
9. 561 fps/171 mps
10. 531 fps/162 mps
11. 587 fps/179 mps
12. 590 fps/180 mps
13. 600 fps/183 mps
14. 587 fps/179 mps
15. FPS were lower than the 14 pump test

[Psipumper]

Could you also add a drop of thread locker?

Yes , thread locker helps with a light press fit.

[Nvreloader]

A small step forward...?
Opened the Breech/action tp hole to .140", The OEM hole was .124"
Removed the front crushed bb screen in the inlet hole of the valve.

The only change on "D" test was the TP Hole opened to .140"....
was .136" OEM,  all other are passage ways are OEM .134" to .136"

      "D" Test
Crosman 14.3gr pellets used for all tests:
1. 262 fps/80 mps
2. 379 fps/115 mps
3. 439 fps/134 mps
4. 488 fps/149 mps
5. 524 fps/160 mps
6. 554 fps/169 mps
7. 580 fps/177 mps
8. 593 fps/181 mps
9. 613 fps/187 mps
10. 629 fps/192 mps
11. 643 fps/196 mps
12. 646 fps/197 mps
13. 662 fps/202 mps
14. All pump tests were lower than the 13 pump test

      "C" Test
Crosman 14.3gr pellets used for all tests:
1. 291 fps/88 mps
2. 367 fps/112 mps
3. 433 fps/132 mps
4. 479 fps/146 mps
5. 521 fps/159 mps
6. 551 fps/168 mps
7. 574 fps/175 mps
8. 593 fps/181 mps
9. 606 fps/185 mps
10. 616 fps/188 mps
11. 629 fps/192 mps
12. 643 fps/196 mps
13. 646 fps/197 mps
14. 659 fps/201 mps
15. 666 fps/203 mps
16. 682 fps/209 mps
17. 688 fps/210 mps
18. FPS were lower than the 17 pump test

[Blowpipe Sam]

That's nearly identical to the performance of my Crosman 1400's.  I don't push them past 10 pumps so I don't know what the upper end would look like.  Honestly, I expected more from that gun.  I thought it would be good for 17 or 18 FPE.

[Psipumper]

Looks like it flattens out on fps after 10 pumps. Could have something to do with the rubber donut in the pump rod or excess headspace. I would recommend removing the oring from the pump piston and checking/adjusting the pump rod length so the piston touches the valve.
I have also determined the bolt probe is blocking the transfer port .

Photo is modified pump rod to delete rubber piece. I made it slightly different from the print to leave a place to add a felt wiper of some sort.
