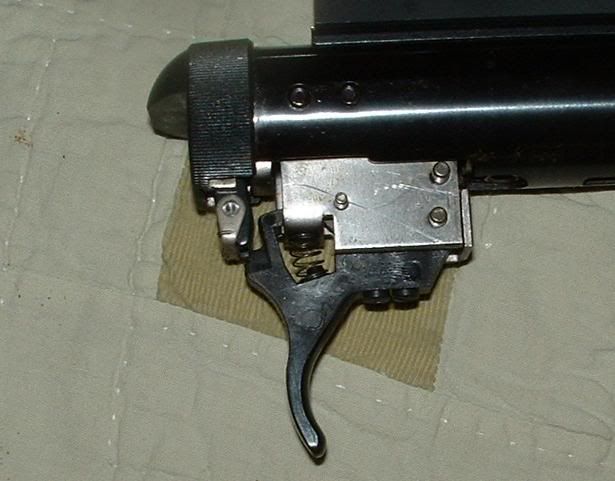

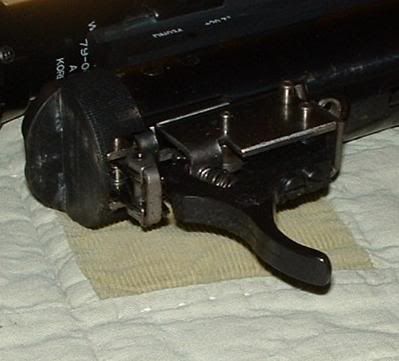

Author Topic: Is this a T01 trigger? (Read 7402 times))

lizzie · « **on:** November 08, 2011, 10:17:52 AM »

Anyone know for sure? Just trying to familiarize myself with the model 34 that I recently bought.

I need to give it a good cleaning and light lube to try and get rid of the rubbing that I'm noticing when I cock the gun.

Mark 611 · « **Reply #1 on:** November 08, 2011, 10:56:32 AM »

yes I think so?

lizzie · « **Reply #2 on:** November 08, 2011, 11:09:07 AM »

Thanks Mark!
From what I'm "hearing" and what I'm reading, it sounds like it's a bit of a pita to work around.

Mark 611 · « **Reply #3 on:** November 08, 2011, 11:18:01 AM »

they can be a little tricky to remove and put back in!

lizzie · « **Reply #4 on:** November 08, 2011, 11:23:15 AM »

Has anyone that you are aware of made a video showing removal of the T01?

Mark 611 · « **Reply #5 on:** November 08, 2011, 11:42:49 AM »

I haven't looked for one but I'm sure somebody out there knows where to find this info

JimL911 · « **Reply #6 on:** November 08, 2011, 12:00:35 PM »

T-01 with pictures.
http://www.network54.com/Forum/79537/message/1227043001/Diana+48-52++T01+trigger+disassembly-assembly++%28picture+warning%29

lizzie · « **Reply #7 on:** November 08, 2011, 12:10:38 PM »

Thanks Jim- I'll check that one out.

Gary · « **Reply #8 on:** November 08, 2011, 12:42:07 PM »

Yep Lizzie that is a TO-1 trigger for sure. I just had mine in my hot little hands a few minutes ago. They can be very nice when set up right.
Gary

Mark 611 · « **Reply #9 on:** November 08, 2011, 12:42:16 PM »

Thats a pretty good link Jim!

lizzie · « **Reply #10 on:** November 08, 2011, 01:05:07 PM »

Quote from: Gary on November 08, 2011, 12:42:07 PM

Yep Lizzie that is a TO-1 trigger for sure. I just had mine in my hot little hands a few minutes ago. They can be very nice when set up right.
Gary

You didn't happen to make a video did you?

Gary · « **Reply #11 on:** November 08, 2011, 07:27:52 PM »

No Lizzie I didn't and couldn't if I wanted to . No camra. I was changing the spring in my RWS mod. 48.

Gary

Frank · « **Reply #12 on:** November 11, 2011, 03:02:02 PM »

I have a TO1 in a 46E. I have had it apart many times because it will not latch on to the piston rod. Can see nothing wrong when apart. With both the trigger and piston out of the rifle, and I push them together it will catch, but in the rifle it will not. I have set it aside until I can find out why this is so.
Thanks for any info on this......

s10gto · « **Reply #13 on:** November 14, 2011, 10:47:04 PM »

Frank Not sure if this will help but I tuned a 48 T05 and had the same problem. The top hat ended up being a touch too tall. I put a little shorter one in and it was fixed. If you changed anything check overall length from stock parts. Good Luck! Dustin

Frank · « **Reply #14 on:** November 14, 2011, 10:57:31 PM »

Thanks s10gto. I took it apart again today and did install a shorter top hat. It worked for a few times and then acted up again.
I noticed movement in the safety while I was trying cocking it and it would not latch. I pulled the safety out and then it latched. So it has something to do with the safety lever. Then it would latch a few more times, when it would not catch I pulled the safety again and it worked. So somehow the safety is not being pushed back by the cocking action. I will just use it as is for awhile and maybe it will work in. I don't want to wear it out by taking it apart again and again..... Thanks...Frank

s10gto · « **Reply #15 on:** November 15, 2011, 12:35:40 PM »

I would try it with no top hat for a test. The 48 I did was kinda same way. If I wiggled the trigger a touch it would latch. I'm thinking you are real close. Maybe a touch thinner top hat and you will have it.

Frank · « **Reply #16 on:** November 15, 2011, 12:45:45 PM »

Dustin, Yes, I should try what you mentioned. I will take the top hat out and see what that does. That should prove something.... Frank.....

lizzie · « **Reply #17 on:** November 16, 2011, 07:49:00 PM »

edited to remove image

Frank · « **Reply #18 on:** November 16, 2011, 10:27:46 PM »

Lizzie, that is not a TO1 trigger. Can't say what it is otherwise......

lizzie · « **Reply #19 on:** November 16, 2011, 10:30:02 PM »

Quote from: Frank on November 16, 2011, 10:27:46 PM

Lizzie, that is not a TO1 trigger. Can't say what it is otherwise......

Interesting. The guy who posted the pic thought it was, as did the others involved in the discussion. I suppose this means I should remove it, lol.
