Author Topic: My Custom Made Disco Stock (Read 8292 times))

shadowr1 · « **on:** September 02, 2011, 01:32:20 PM »

I decided to make my own stock for my disco.
I started with a Boyd's blank and started with a block of wood.
http://www.boydsgunstocks.com/Walnut-and-Laminate-Hardwood-Gunstock-Blanks-s/79.htm
I forgot to take a pic before I started cutting.
For tools, I didn't use much, Table saw, hole saw, wood file mounted on my sawsall( worked awesome), drum sander mounted on a drill, dremel and sandpaper.

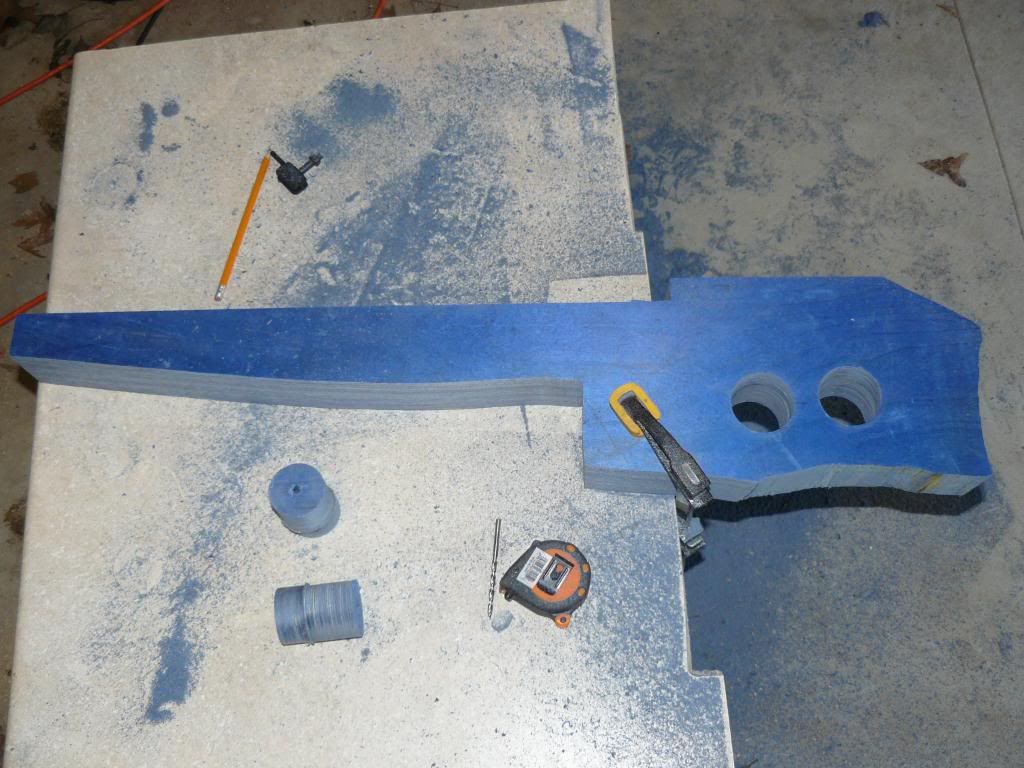

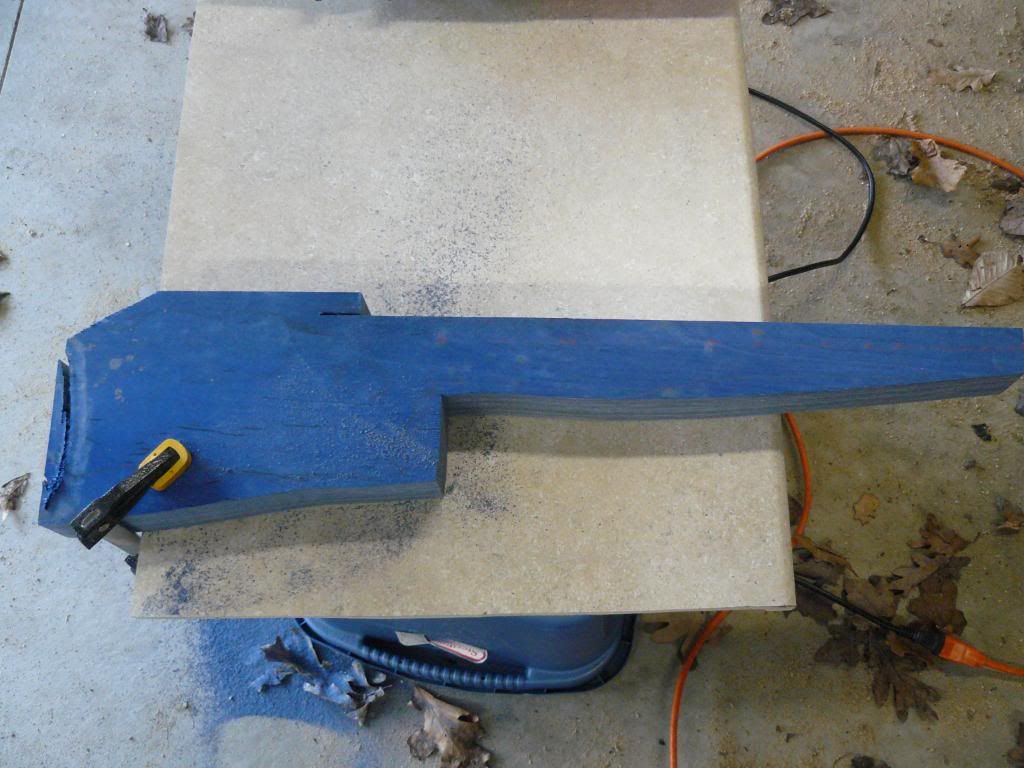

I started by drawing a ruff outline on the stock and then started cutting the big pieces with a table saw and sawsall.

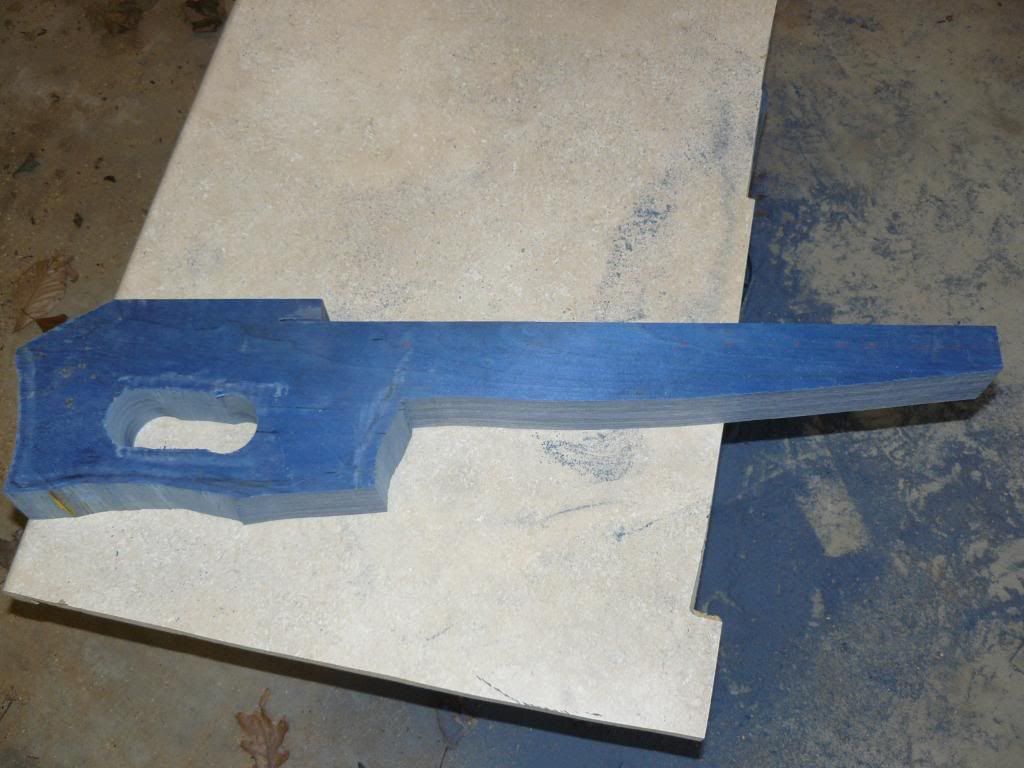

Next up was using a hole saw to start the opening in the stock.

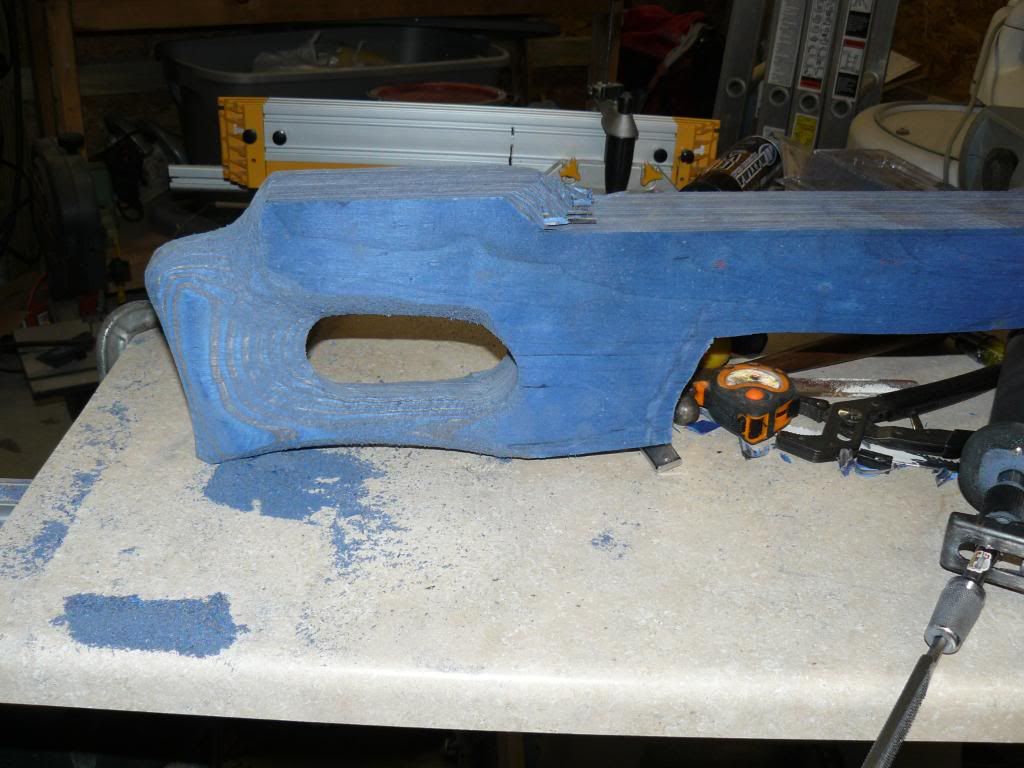

Here started with some chisels and decided that wasn't working the best, so I started with the sawsall and file.
I liked the sawsall because I could adjust the speed and I could shave off small amounts at a time. You can move the sawsall around shaving small amounts and shape as you go. That's how I did all the shaping except the handle. And tremendously faster than by hand.

shadowr1 · « **Reply #1 on:** September 02, 2011, 01:40:07 PM »

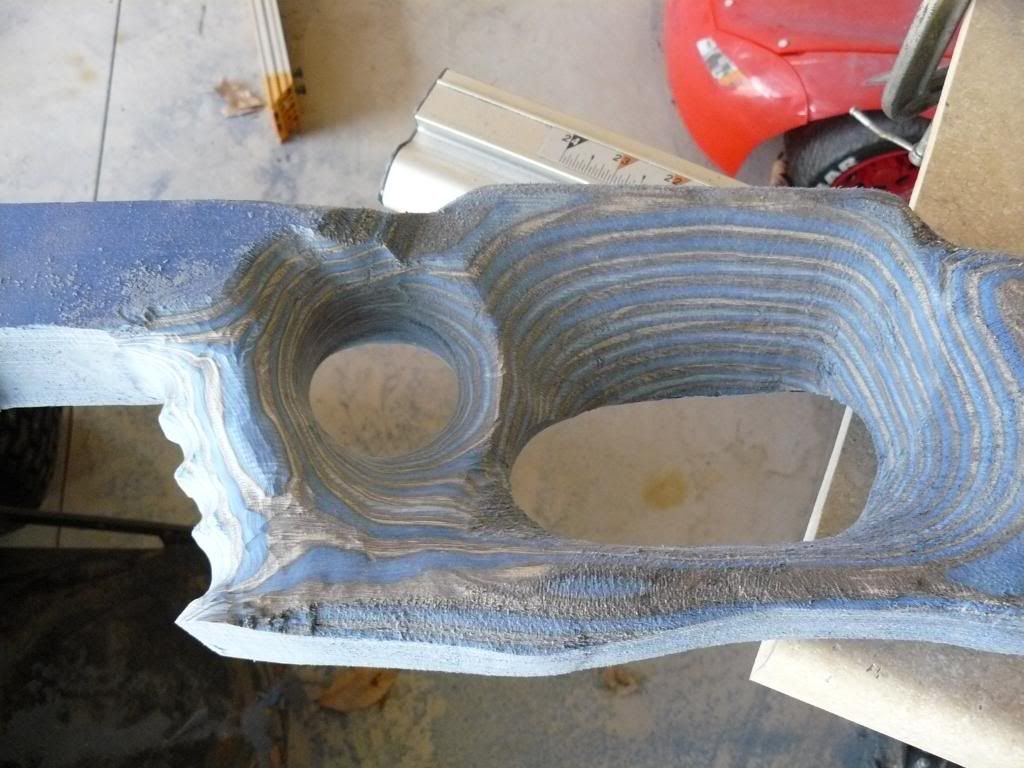

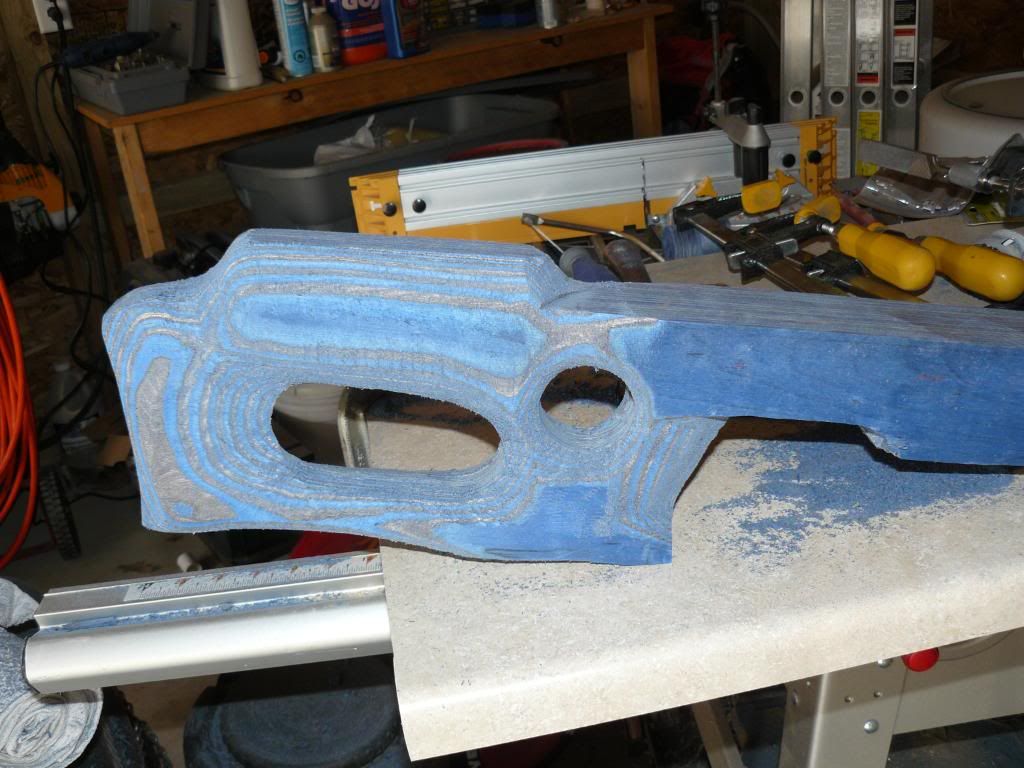

More shaping.

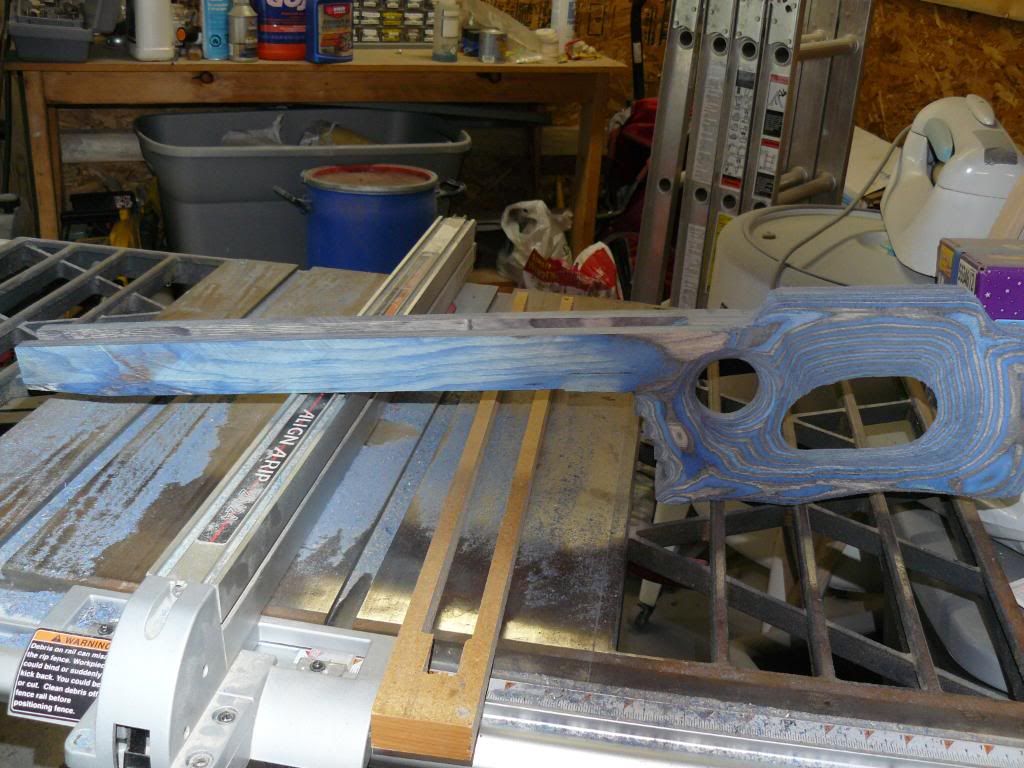

Rather than focusing on one spot, I jumped all over the hand grip and butt area, keeping all the shapes working together. I would see a spot that needed to be worked a little more here and there and as you work on one spot it will show other areas that need to be shaped to work with other areas. The sawsall was great for this, it took off material at the perfect speed for this work.

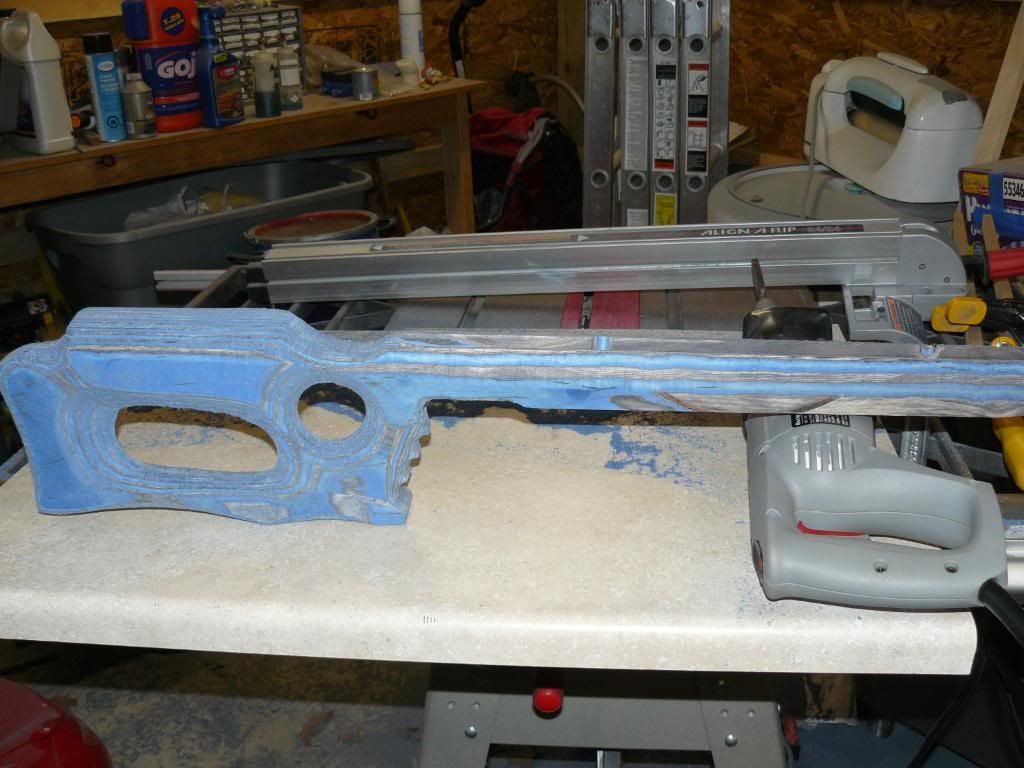

Used the hole saw for the thumb hole and started shaping with the sawsall.

Started shaping the hand grip with the dremel.

jonnnyboy · « **Reply #2 on:** September 02, 2011, 01:54:14 PM »

That's the ticket!

Keep the pics coming brother. We can't wait to see how it turns out. Beautiful start.

joe

shadowr1 · « **Reply #3 on:** September 02, 2011, 02:09:03 PM »

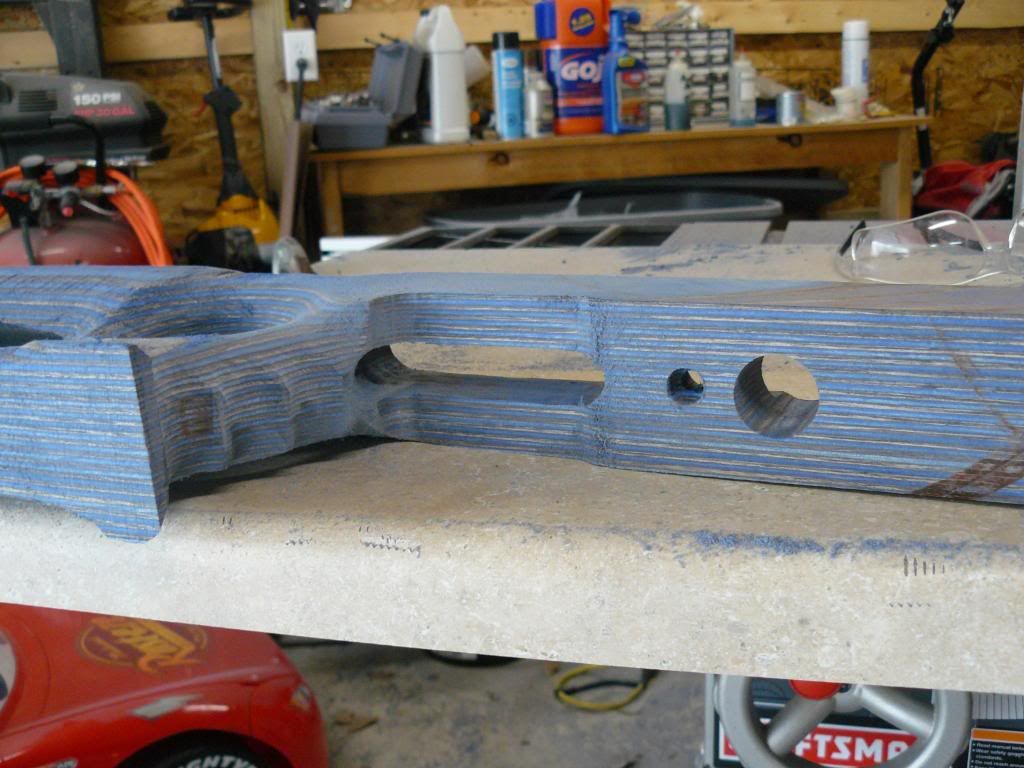

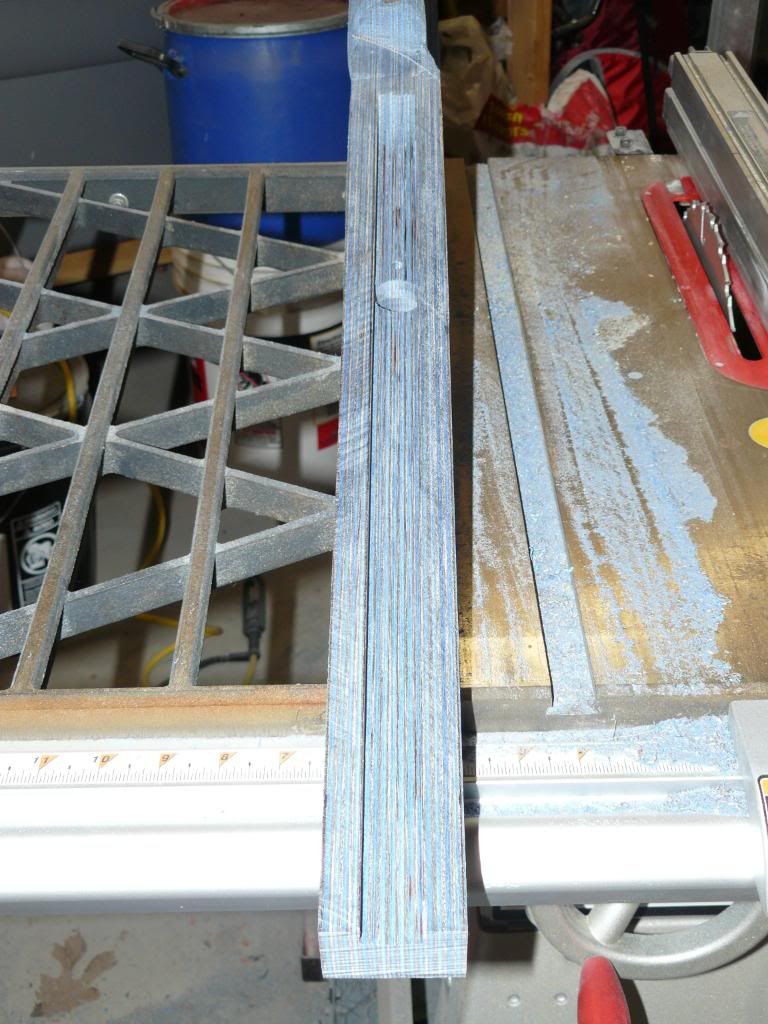

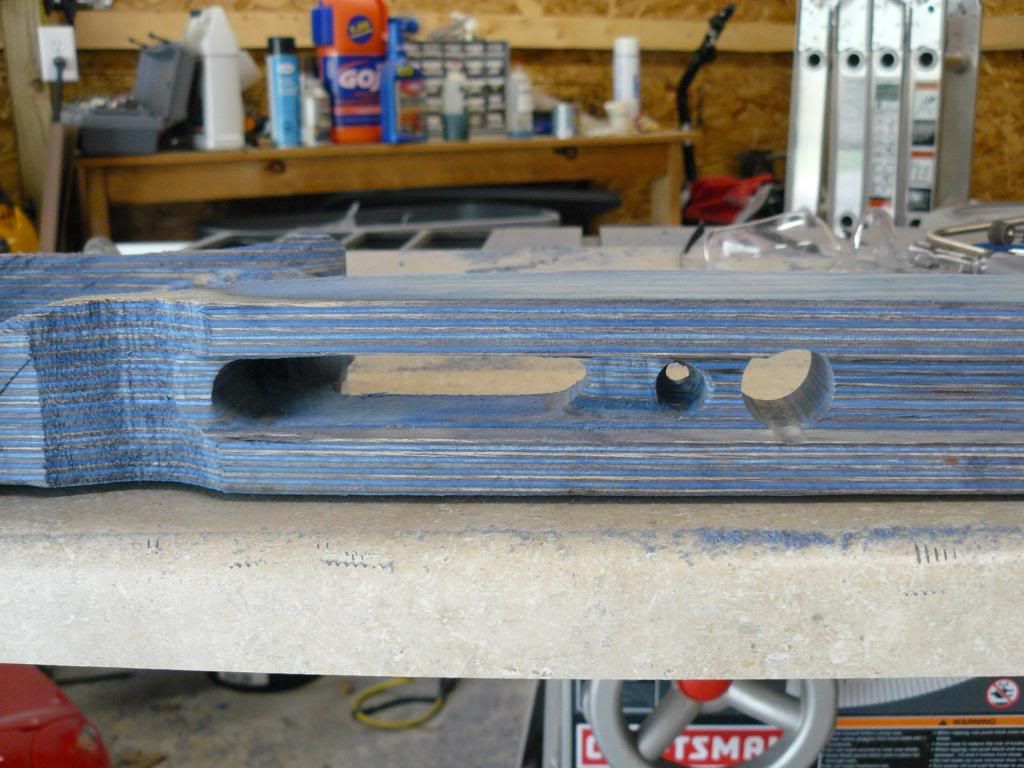

Here I used the table saw to cut out a square grove, it's not as nice as a rounded bed but it holds the gun snugly on three sides.

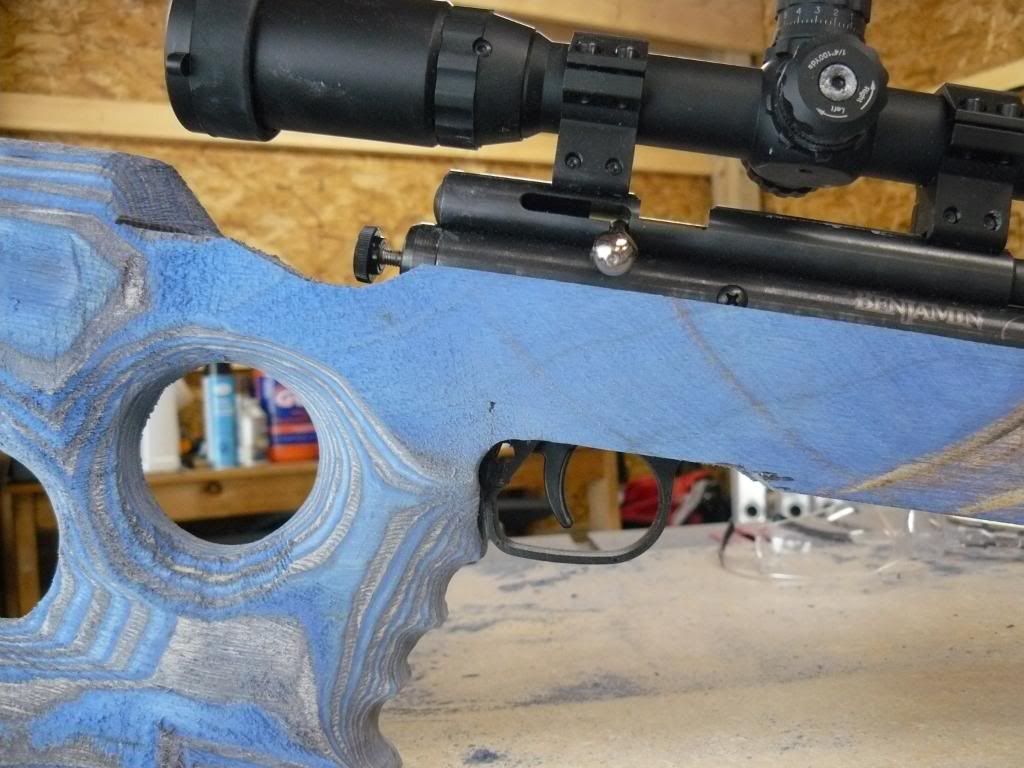

For the trigger group I drilled out the opening and then smoothed it out with the sawsall and dremel.

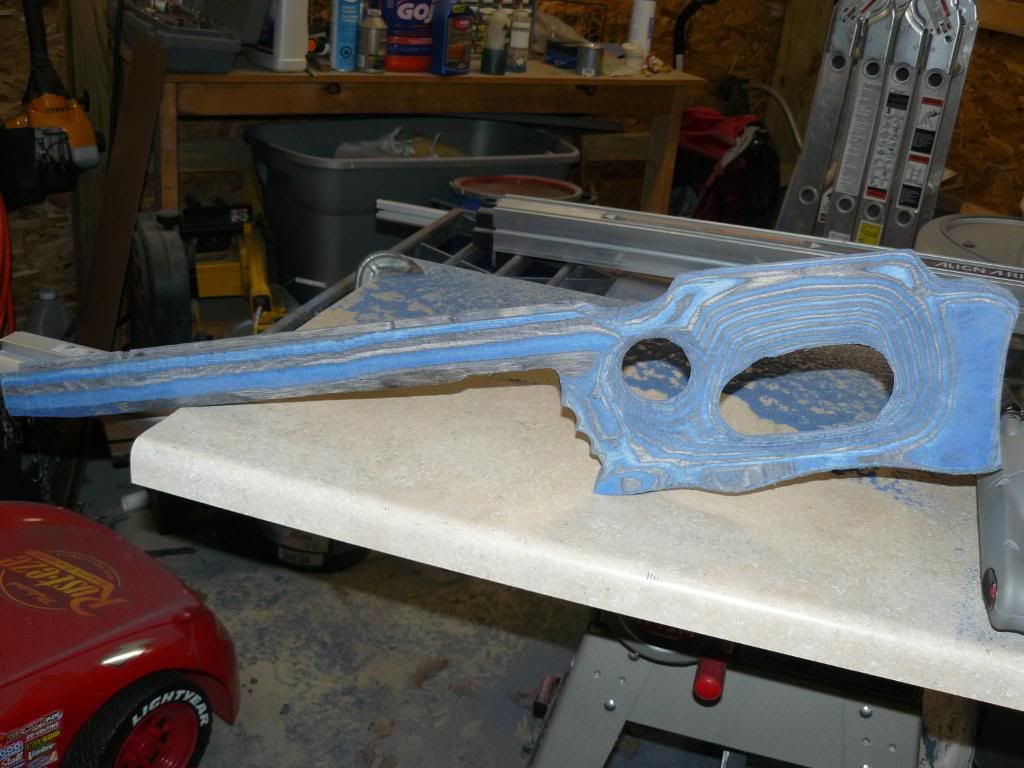

Now it's ready for some poly.

shadowr1 · « **Reply #4 on:** September 02, 2011, 02:18:23 PM »

I would recommend anyone with some woodworking ability and time and desire to do it. It's not expensive if you do screw it up and scrap it. It does take some time, I don't know how much time I spent on it but it was definitely worth it. To guess how much time spent would be somewhere around 15 to 20 hours.
I could have hand sanded it more than I did, There are quit a few small dings in it that I just didn't have the patients to sand out. I don't have much more patients than my two year old has.
Put on one coat of poly, then sanded.
Put on one more coat and sanded.
and then two more coats.

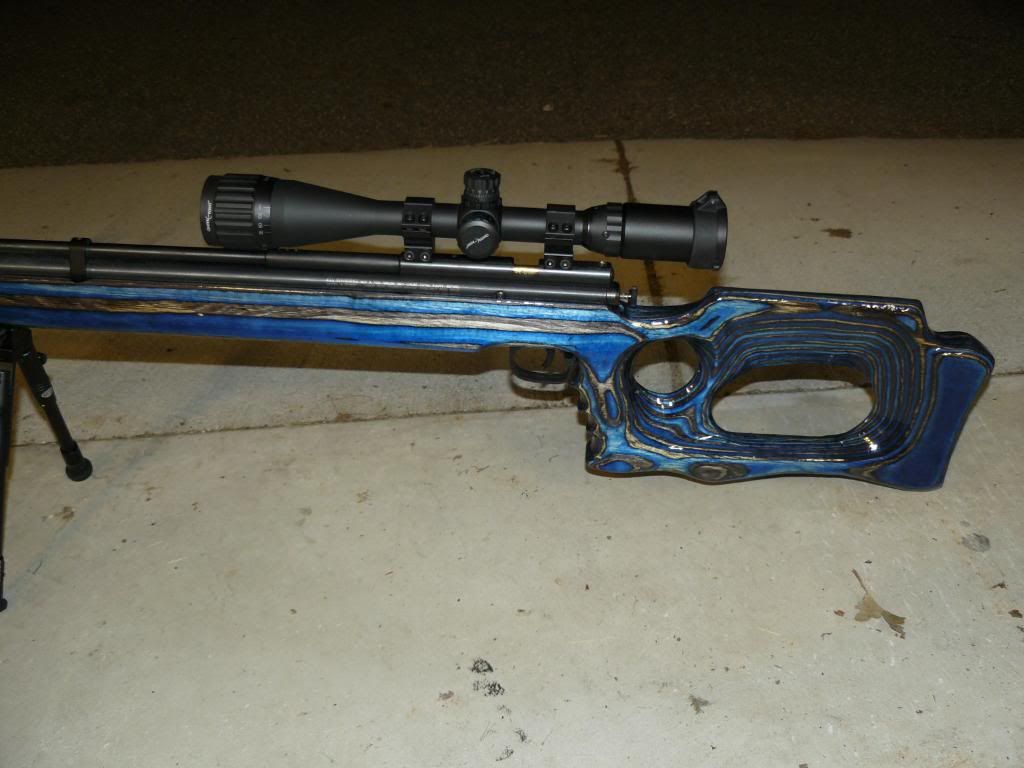

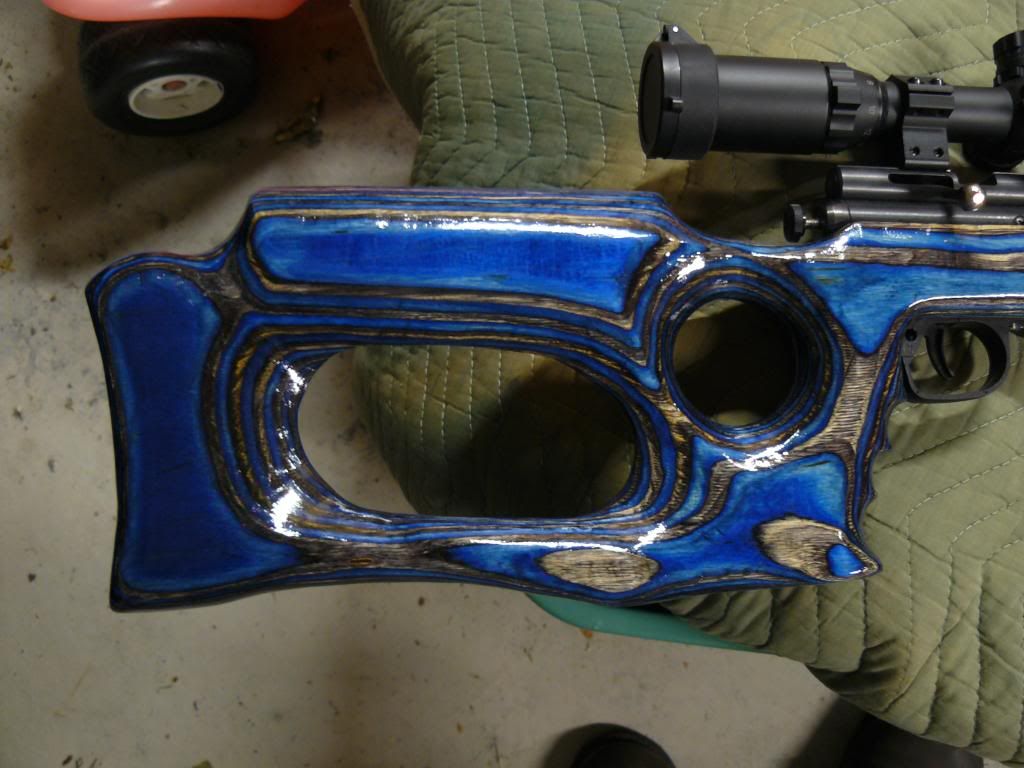

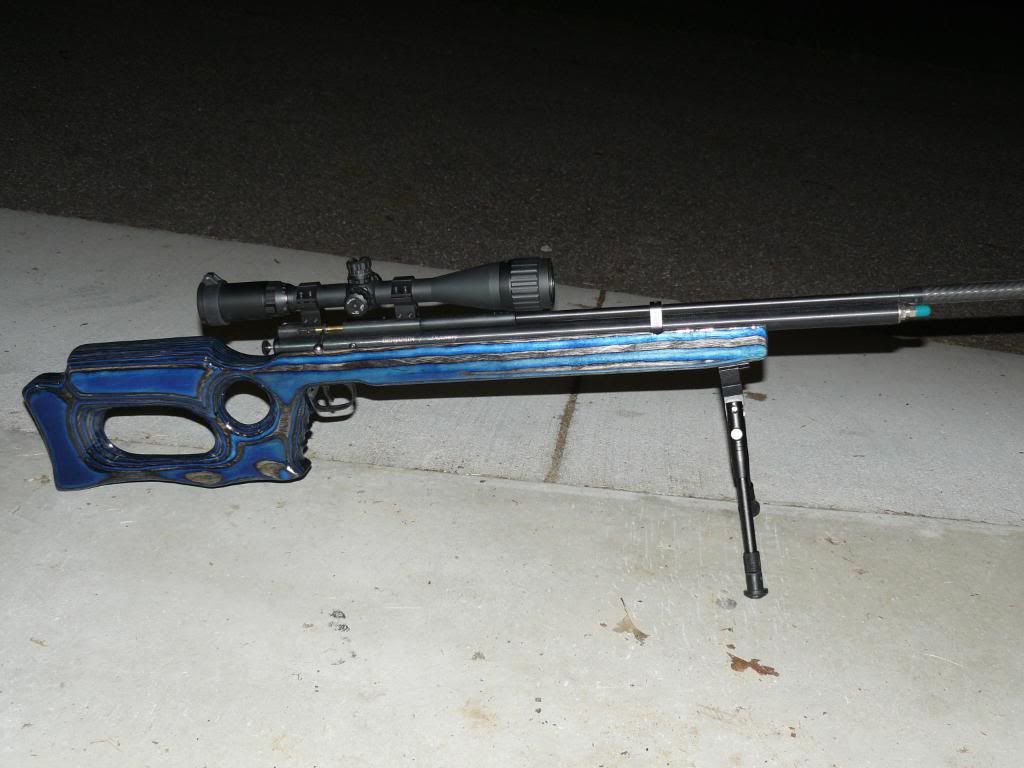

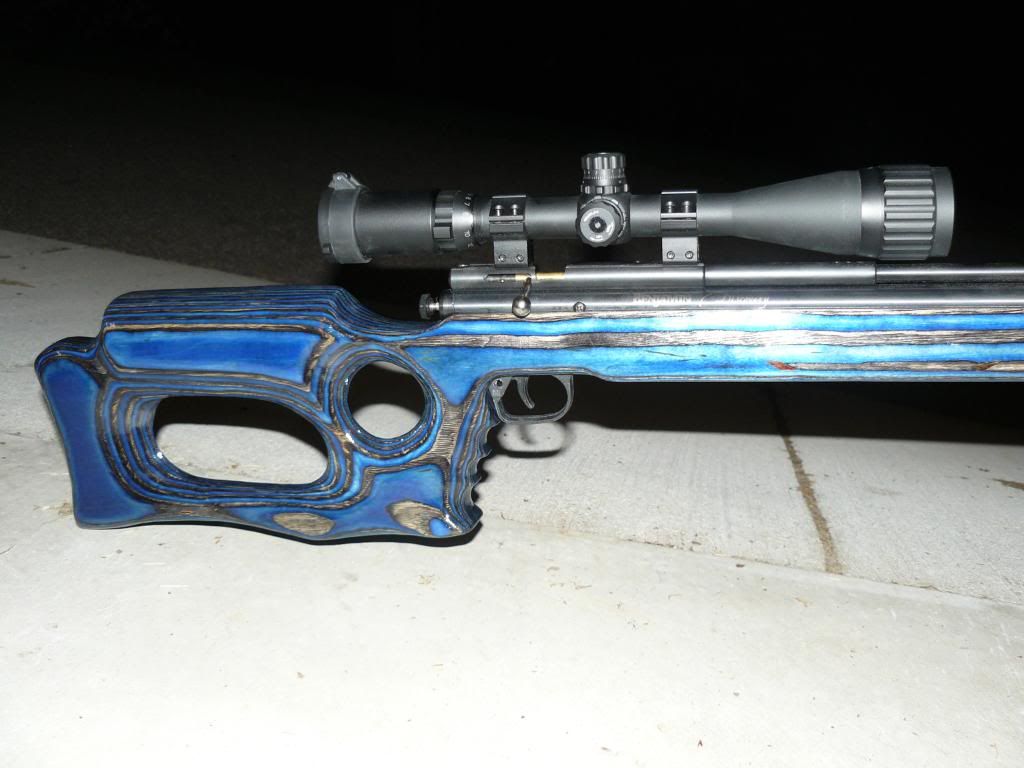

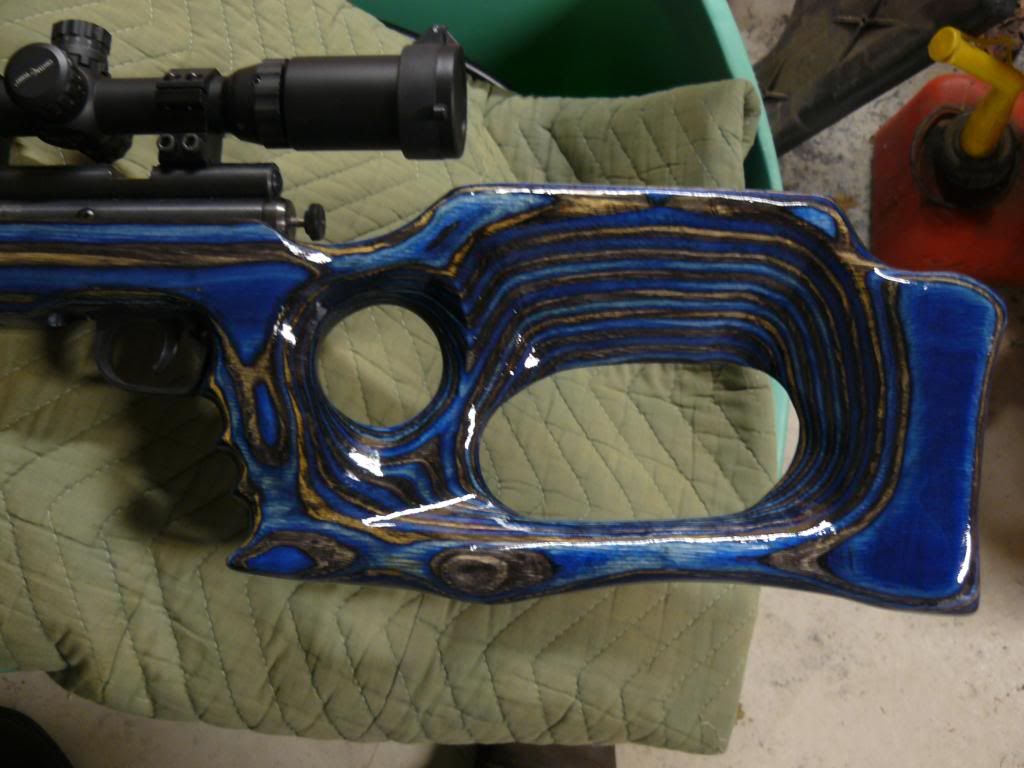

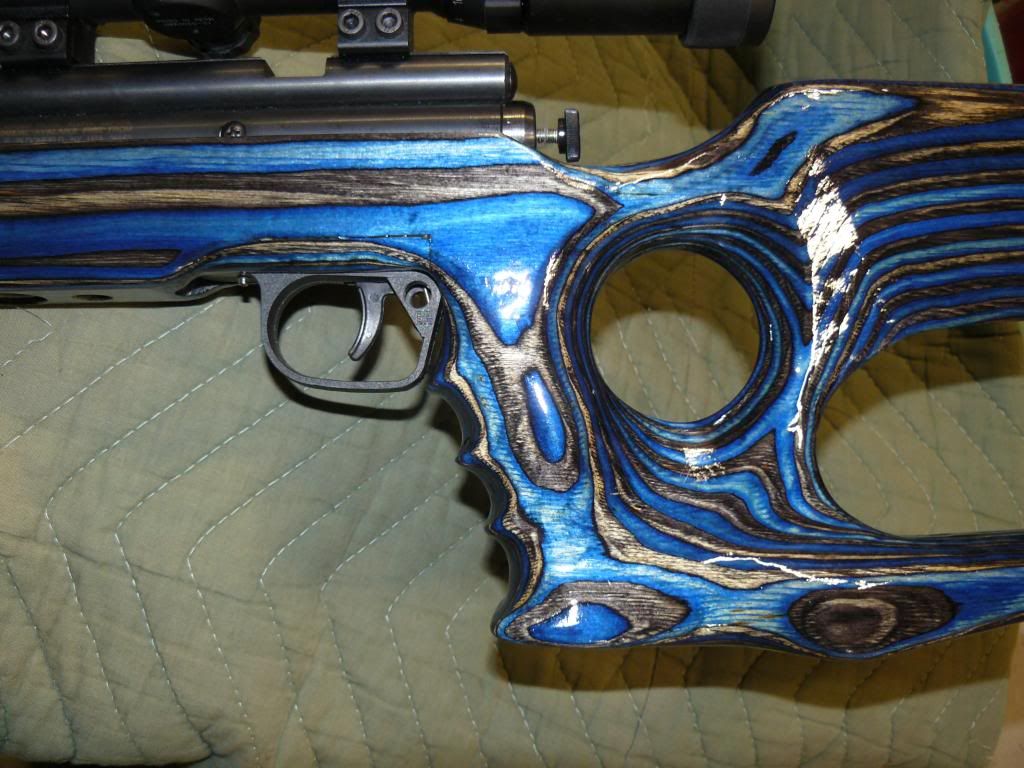

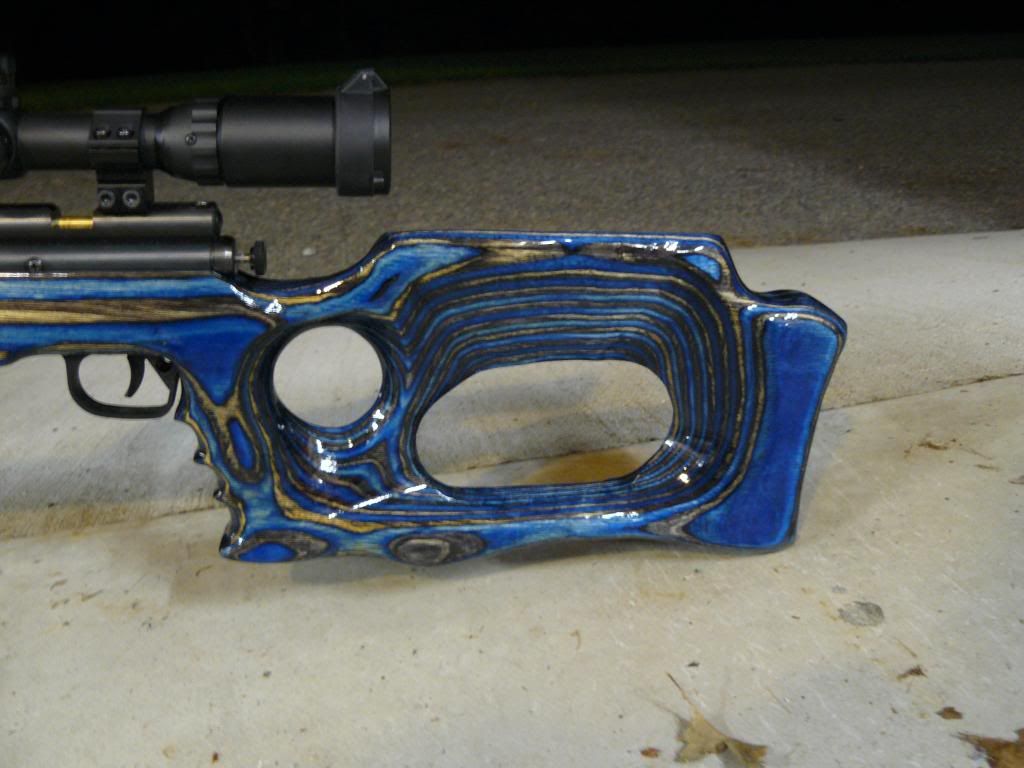

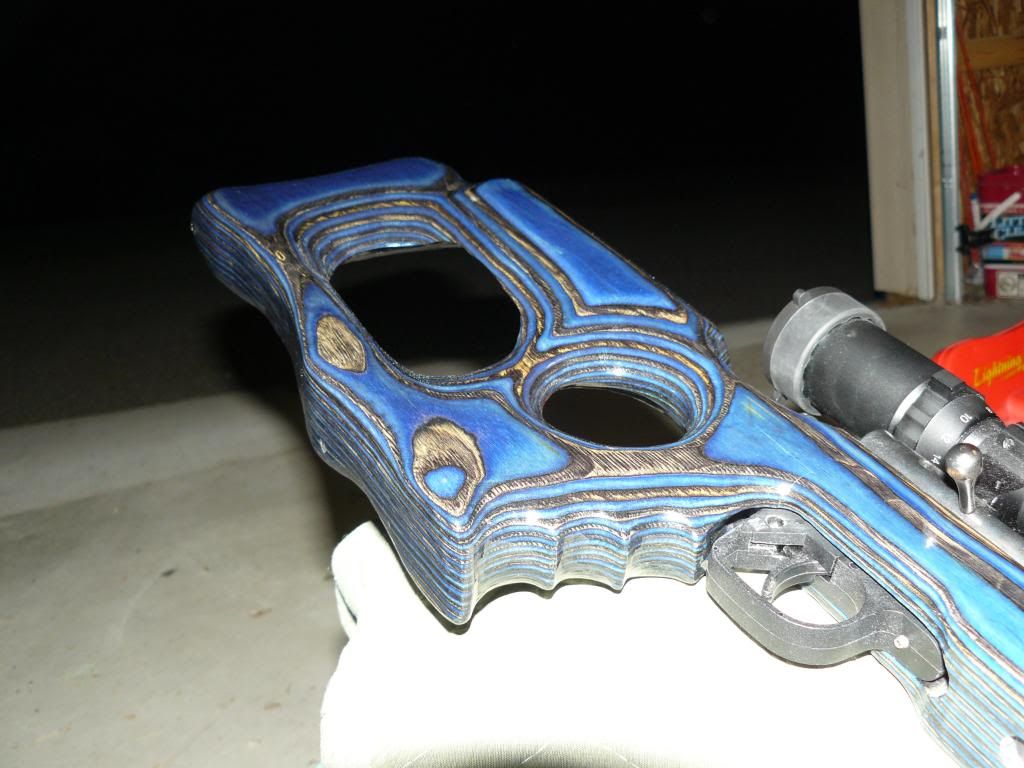

And.................

1377x · « **Reply #5 on:** September 02, 2011, 02:53:33 PM »

congrats!
job well done!

goodland · « **Reply #6 on:** September 02, 2011, 04:51:43 PM »

Great Job awesome that you did it yourself

How is the cheek weld/sight picture?

amb5500c · « **Reply #7 on:** September 02, 2011, 05:57:55 PM »

Definitely looks like a fun project.
Richard

ezman604 · « **Reply #8 on:** September 02, 2011, 06:02:23 PM »

EXCELLENT job. Now that's a new one on me and one I'll keep in mind. File mounted to sawsall. NEAT!!!!
Happy Shooting!!!!
Dave

joe k · « **Reply #9 on:** September 02, 2011, 06:03:34 PM »

that is real nice job well done.
joe

dk1677 · « **Reply #10 on:** September 02, 2011, 07:13:34 PM »

Great job there!

Dead nuts dog · « **Reply #11 on:** September 02, 2011, 09:33:47 PM »

That's really cool

0351_Vet · « **Reply #12 on:** September 02, 2011, 10:16:38 PM »

Great Job.....Lots of patients required. Thumbs-Up.

lloyd-ss · « **Reply #13 on:** September 03, 2011, 08:44:42 AM »

Very nice looking job. Did you have another thumb hole stock you were using as a guide? Regarding patience, I think 20 hours of sanding and shaping shows a LOT of patience.

I'm with Dave on that sawzall file. Very cool. What's the adapter gizmo you are using?
Lloyd

Bullit · « **Reply #14 on:** September 03, 2011, 09:30:17 AM »

A file in a sawzall!!! Truly innovative. I really like your color choice! That would definitely get top dollar here in the Bluegrass! Good Job...Mike

shadowr1 · « **Reply #15 on:** September 03, 2011, 06:04:27 PM »

Quote from: goodland on September 02, 2011, 04:51:43 PM

Great Job awesome that you did it yourself
How is the cheek weld/sight picture?

Thanks all.
The cheek weld was an area that I took the time to file a little and check, file some more and check until I got it to fit me perfectly.
I'm a lefty when it comes to shooting guns, bows and pool, (everything else is right handed) so I shaped every part to fit me perfectly. Something you can't get from a store bought stock.

shadow · « **Reply #16 on:** September 03, 2011, 06:07:14 PM »

Great job and she's a looker for sure. Ed

shadowr1 · « **Reply #17 on:** September 03, 2011, 06:08:46 PM »

Quote from: lloyd-ss on September 03, 2011, 08:44:42 AM

Very nice looking job. Did you have another thumb hole stock you were using as a guide? Regarding patience, I think 20 hours of sanding and shaping shows a LOT of patience.

I'm with Dave on that sawzall file. Very cool. What's the adapter gizmo you are using?
Lloyd

Thanks, I was looking at Menards for files and other tools that would be useful and saw the sawsall thing. I'll take a pic of it and put it up here so all can see.

KenH · « **Reply #18 on:** September 03, 2011, 07:00:53 PM »

I'm impressed!!! Now I have an excuse to get a sawsall - been wanting one.

Darn good work.

Ken H>

Smaug · « **Reply #19 on:** September 04, 2011, 12:01:50 AM »

Nice job...

Geez, I hope you wore a respirator. I hate to think of what's in that blue dust getting in your lungs.
