Looking for inexpensive side wheel for bsa tactical scope

[gamoshooter]

  Hey guys

I have a bsa tactical side focus scope on my Mac 1 .22 disco and was hoping to find a side wheel for it

The focus turret measures 31mm at the outside so I'm guessing I need 31 mm I'd wheel ??

I say inexpensive because I've seen how much some of them cost but if I could find one under $50
That would be ideal
Thanks for any info on where to get one
Gamoshooter

[JMJ in NC]

I made one for my BSA 6-24x44 scope.  Most options are well over $50. You might have luck with the ones on the Crosman/Centerpoint website.

http://www.crosman.com/outlet/x-large-side-wheel-for-compact-scopes

Mine is 3D printed and a tad rough.  I still have to add & mark the tape.




I can modify the CAD file to omit the 12-pellet dispenser and send it to you to have printed local to you, if you like.

JMJ

[Motorhead]

I have used HAWKE 4" wheels that fit sidewinders and also Older Nikko wheels.  Requires LATHE turning an insert ring sized to scopes knob and I.D. of the ring.  Works great !!

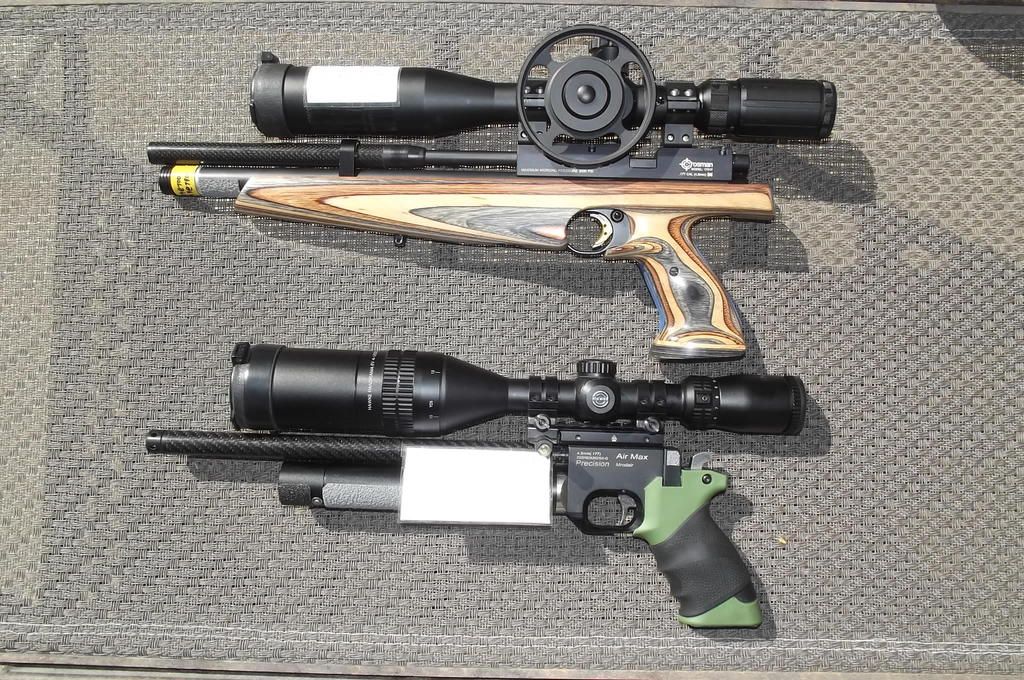

here an adapted Nikko wheel ...


here the Hawke ( Top Pic )

[56S]

If you scored one of the Midway clearance SF scopes in late '16, you are in luck.  Hawke 4" attachment type 2, part number 63001 fits very well.

[JMJ in NC]

Great info 56S. Thanks!

JMJ

[Josparky]

JMJ in NC what did you print that in PLA how is it holding up.

[JMJ in NC]

I had it printed in polycarbonate and it is holding up just fine

JMJ
