A little shop time - Or making a cocking assist

[ezman604]

Getting shop time has been rare for me for almost a year now. I'm gradually getting back to the bench. I have several airguns in various stages of build at the moment. I veered away from the bench to fire up the lathe today for something totally different.
It's ALL therapy for me though.

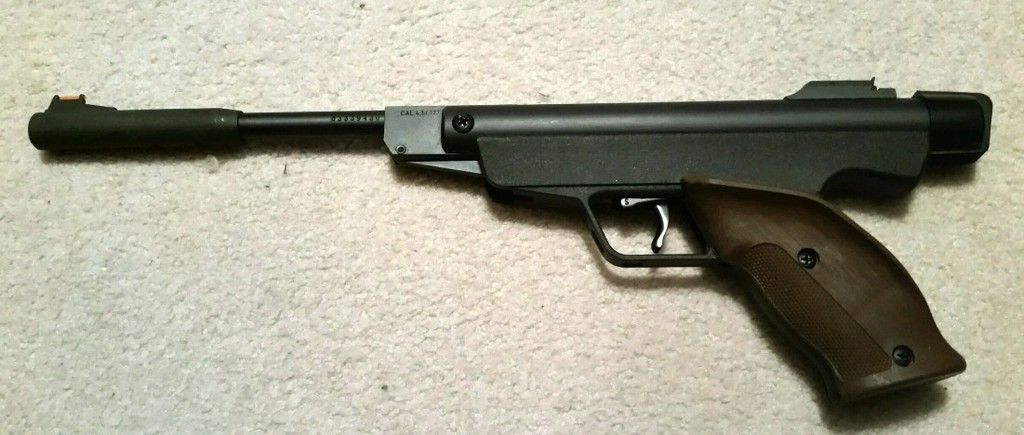

Last week I acquired a sweet Diana P5 Magnum pistol. It had a broken front fiber optic sight tube and now I see why. These jewels were not sold with a cocking assist accessory.



Being rated as a 700+fps air pistol, you can expect some resistance when cocking. I bought some replacement fiber optics rods and fixed the missing front. Then I decided to build a cocking assist handle. This to not only help cock this beast but to help prevent breaking the front sight. I had seen folks recommend just using a piece of conduit or aluminum tube. I didn't want to use anything that could cause scarring or scuffing so I decided to go with Delrin.

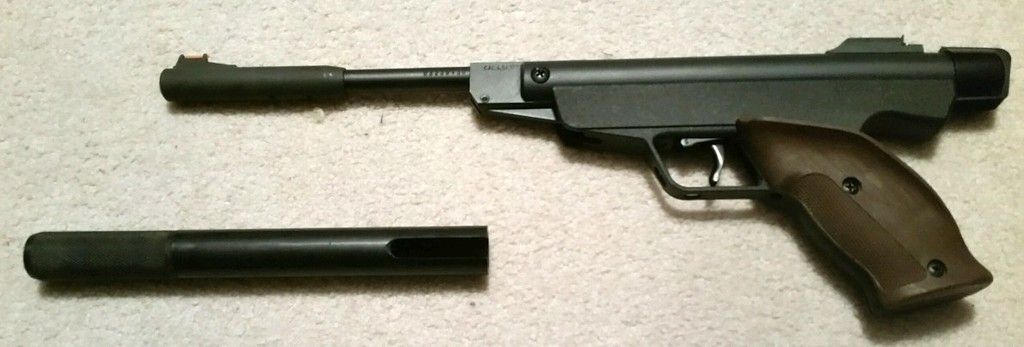

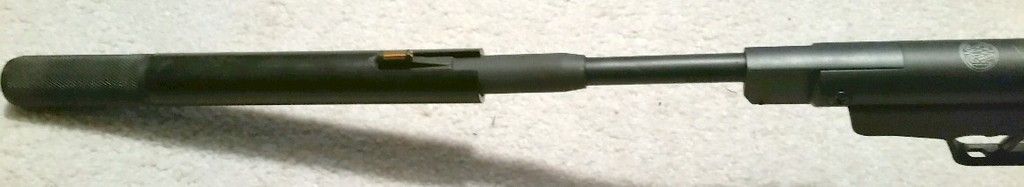

Bored to fit and milled the slot. Has a tiny bit of play but it slides on easy and works like a champ.



Therapy...ahhhhhhhhh.

SAFE & Happy Shooting!!!!
Dave
