RWS92/Cometa 200 spring and seal

[tomykay12]

Hi. Anyone know where to get a spring and seal for the Cometa 200? I have read crosman storm parts work, cut 3 coils off the spring, but would rather put in factory parts. Anyone here go thru one of these?  Thanks, tk

[flyer]

          The Cometa 200 is a discontinued model, it has been replaced by model 220.
         It had a leather piston seal  that is hard to find in these days. You can install the Vortek adapter for 26 mm piston seals plus a 26 mm seal  that are easier to obtain:

           http://vortekproducts.com/ourstore/Seals-Tuning-Parts?product_id=97

         As for the spring  you can try and measure the internal diameter of your piston and look for a spring with slightly lower outside diameter.  The trigger system in this rifle is not so good (trigger is heavy due to the design of the mechanism) therefore a short spring with minimal amount  of preload will help you a lot in this area.



[tomykay12]

Interesting... I have read of folks replacing the seal with a crosman storm seal, 25mm. Not leather. IDK for sure, but will when I disassemble. Certainly will share when I have the rifle, tk

[flyer]

Interesting... I have read of folks replacing the seal with a crosman storm seal, 25mm. Not leather. IDK for sure, but will when I disassemble. Certainly will share when I have the rifle, tk

          Let's not confuse things - the Cometa 200 and the Cometa 220 are two different rifles, they do not have many things in common. Check again to see for sure if your air rifle is a model 200 or a model 220. Here are some photos of the model 200:

               http://www.njuskalo.hr/image-w920x690/zracno-oruzje/zracna-puska-cometa-200-slika-26646649.jpg
               http://www.njuskalo.hr/image-w920x690/zracno-oruzje/zracna-puska-cometa-200-slika-26646651.jpg
               http://www.njuskalo.hr/image-w920x690/zracno-oruzje/zracna-puska-cometa-200-slika-26646653.jpg
               http://www.gunwatch.co.uk/guns/5297-Cometa-Cometa-200-for-sale

                  and here are some photos of the model 220 who replaced it:

               http://www.airguns.pl/wiatrowka/wiatrowki/wiatrowka-test-cometa-220.jpg
               http://www.airguns.pl/wiatrowka-test-cometa-220
               http://www.fishingmegastore.com/hires/cometa/cometa220.jpg
               http://cometaairgun.e.movistar.es/en/cometa_carabinas_220.html  (recent production version)
               http://cometaairgun.e.movistar.es/en/cometa_carabinas_220c.html   (compact version)

           The leather piston seal for Cometa 200 is now obsolete and unless you try to make one yourself (it is easy) you can use the synthetic one with a factory adaptor that was issued recently - here is a picture of the adaptor and seal with the central screw and the trigger unit (from shops in Germany):

                  http://www.sportwaffen-schneider.de/product_info.php/cPath/40_97_141_220/products_id/1305

      Here you can see how the old seal looked like, the change took place in January 2013:

         http://www.waffencenter-gotha.de/shop/Ersatzteile/Luftdruckwaffen/HERSTELLER-MODELL/TELL/Tell-200/Kolbendichtung-Manschette-komplett-TELL-200::2051.html

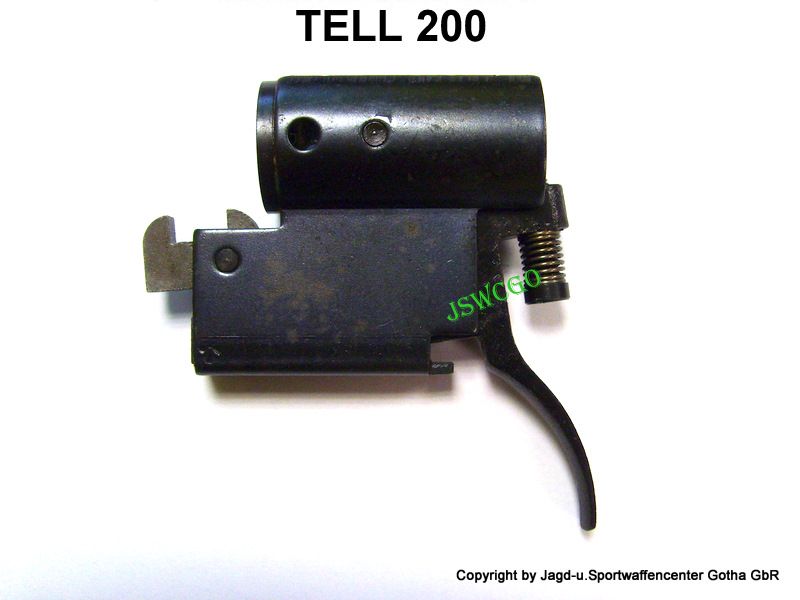

          http://www.waffencenter-gotha.de/shop/images/product_images/popup_images/3108_0.JPG  (trigger unit)


                   And this is the piston seal and trigger unit from model 220:

                   http://www.waffencenter-gotha.de/shop/images/product_images/popup_images/2689_0.JPG
                   http://www.waffencenter-gotha.de/shop/images/product_images/popup_images/2040_0.JPG

                  The use of the synthetic piston seal in old design rifles is possible ONLY with the help of an adaptor.

                I thought that you had already disassembled your rifle. When you do check the diameter of the main cylinder to see its dimension.






[tomykay12]

Thankyou, it is in transit, and I will post when it is here. Very helpful, thanks, tk

[tomykay12]

Forgot to say the gun is a RWS branded model 92. My understanding that is a Cometa 200 in disguise, lol
