Topic: LP 8 disassembly photos (Read 6335 times))
Nod
Sharp Shooter
Posts: 830
yes
Real Name: Don
LP 8 disassembly photos
«
on:
March 17, 2014, 05:43:05 PM »

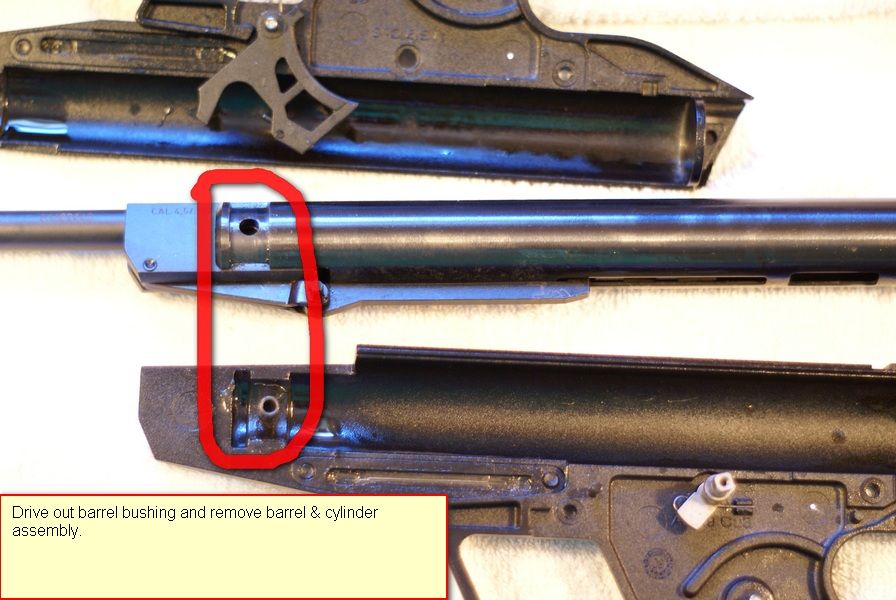

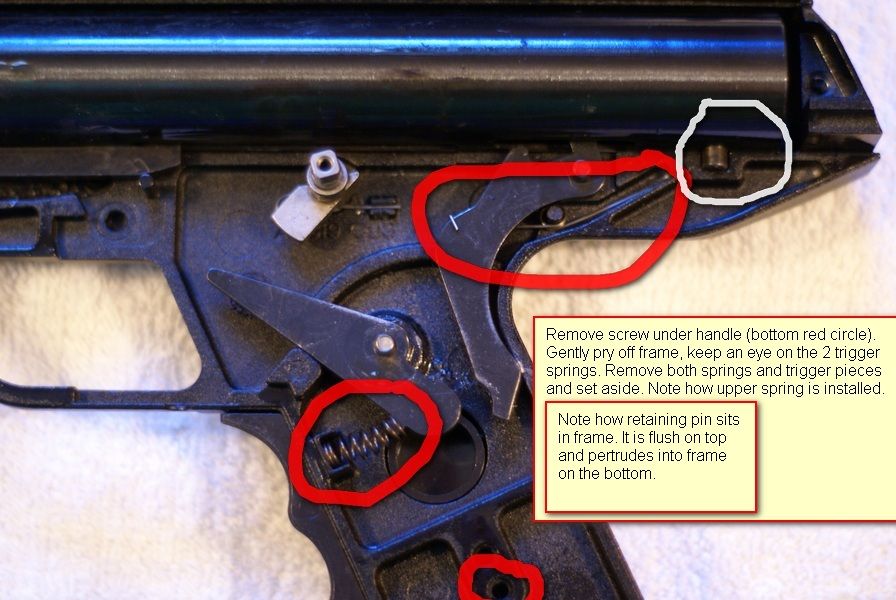

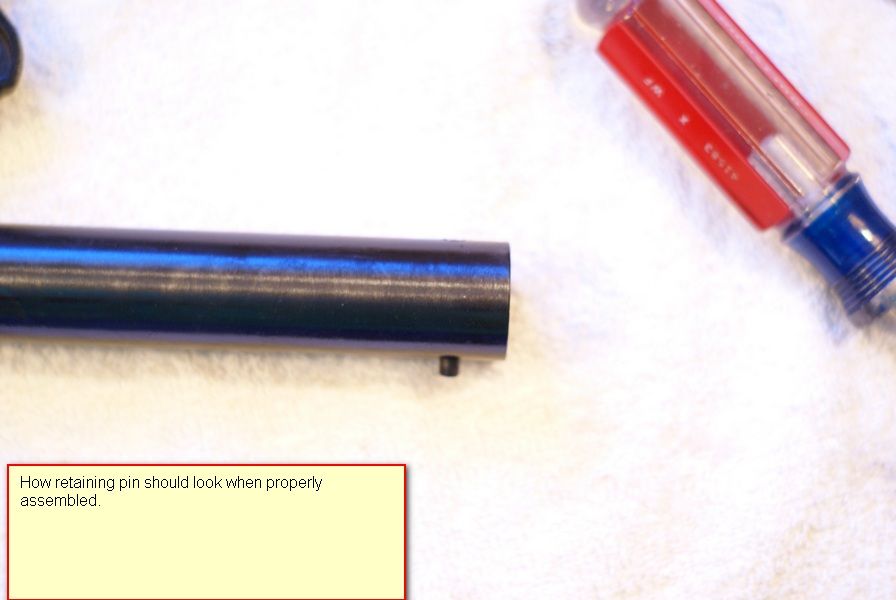

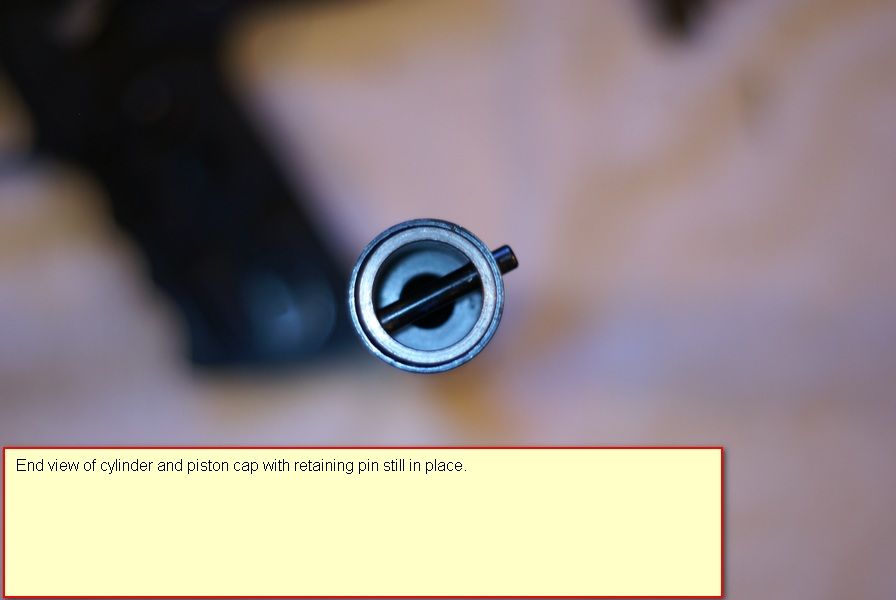

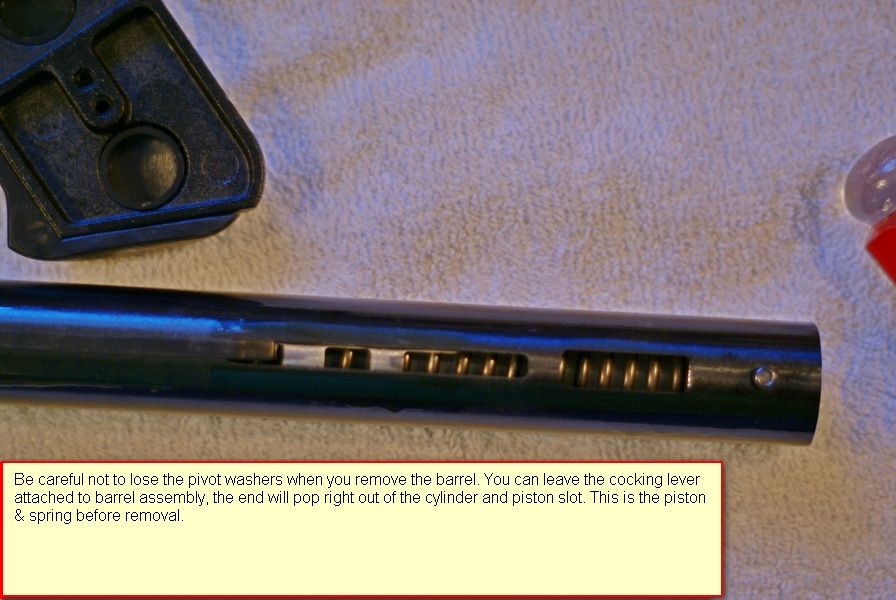

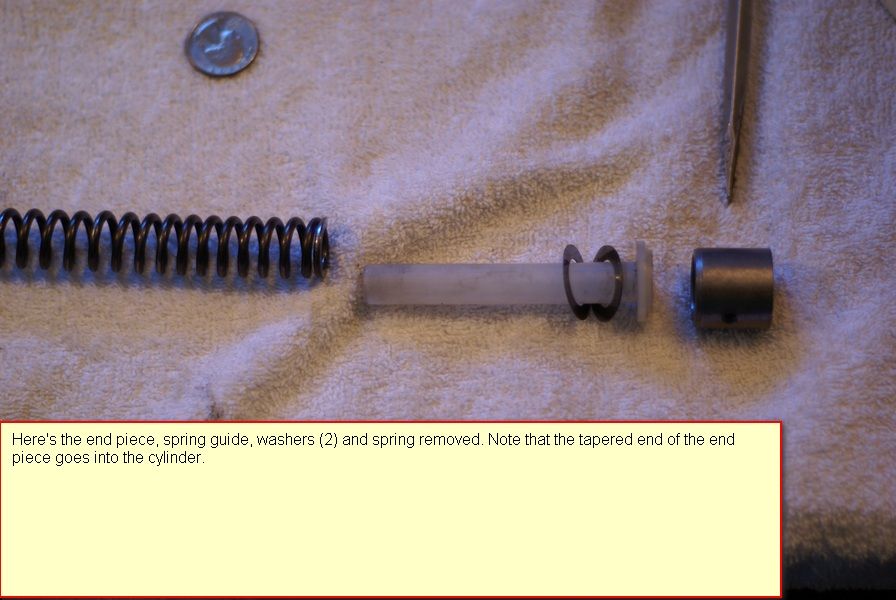

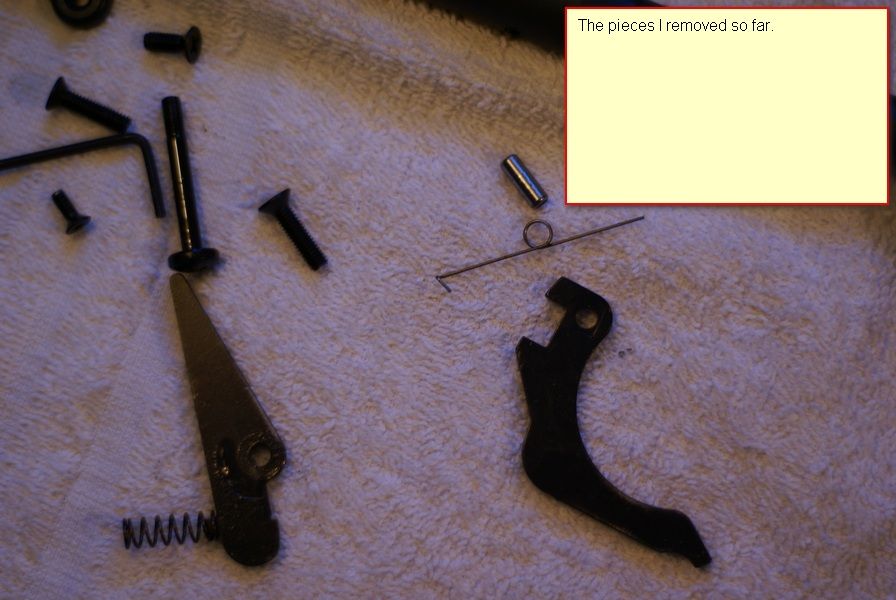

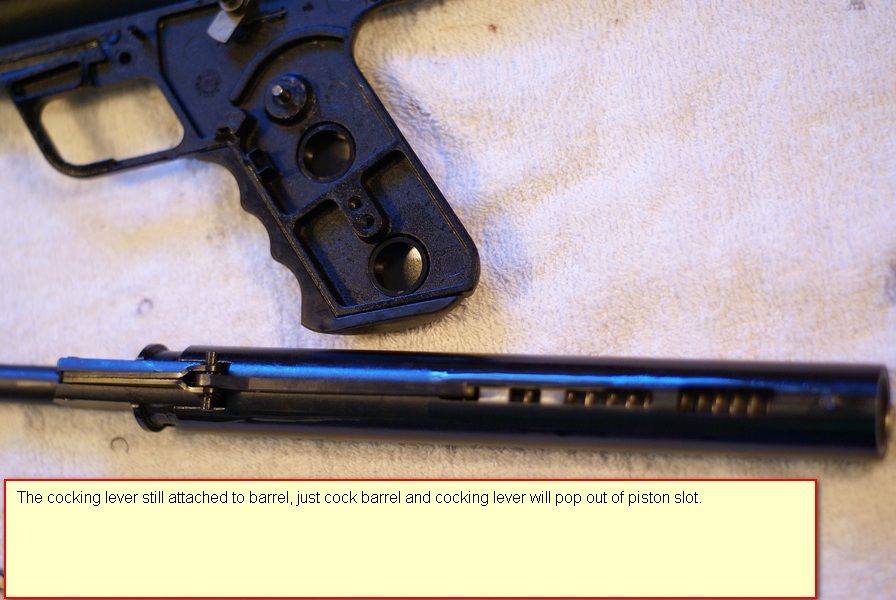

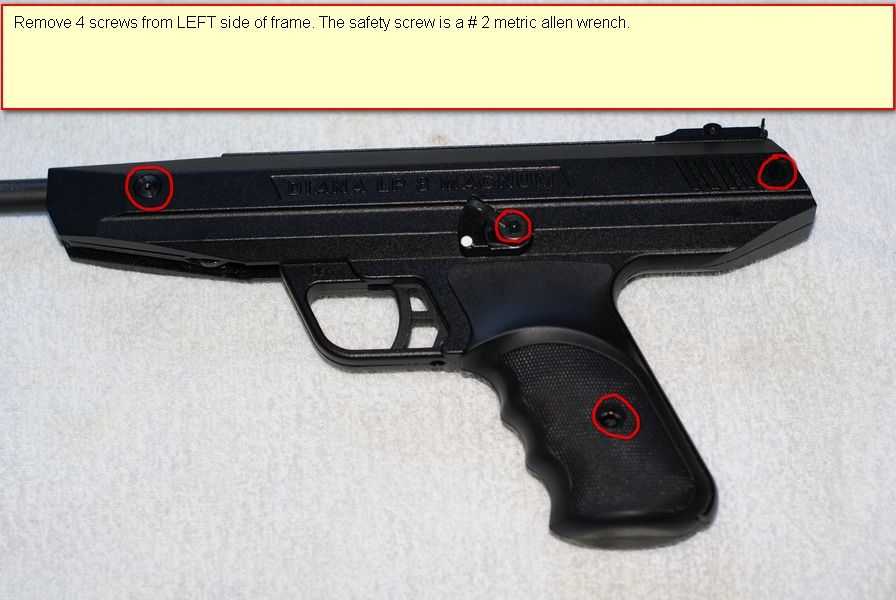

I tore down my LP 8 today to do a home tune. I took photos as I went and have included some instructions on how to do it. It is really simple.
«
Last Edit: March 19, 2014, 12:30:07 PM by Nod
»
Logged
IL.
DON'T WORRY ABOUT OLD AGE, IT DOESN'T LAST !
Benjamin Maraurder .25
Diana 34 .22
Daisy 880.177
Bill in SC
Sharp Shooter
Posts: 542
Re: LP 8 disassembly photos
«
Reply #1 on:
March 19, 2014, 06:47:54 PM »
Nice pictorial and "how to" post. Thanks!
Bill in SC
Logged
Bennettsville, SC 29512
Stoeger X20 .22 (Myrtle)
Stoeger X20S .177
RWS Diana 34 T06 .22
RWS 34 Pro Compact T06 .177
RWS Diana LP8 .177
Crosman 13xx carbine .22
airsenal
Guest
Re: LP 8 disassembly photos
«
Reply #2 on:
August 27, 2018, 01:48:46 PM »
Thank you Don! You're making it to easy for me!
Really appreciate it.
Logged
gamo2hammerli
GTA Moderator
GTA Senior Contributor
Posts: 6328
Re: LP 8 disassembly photos
«
Reply #3 on:
August 27, 2018, 02:52:31 PM »
Good clear photos. I don't have a LP 8 but have a RWS Diana G5 Magnum....which is kinda similar. I had disassembled it once to replace a broken barrel "Pivot" spring (Weird shaped spring).
Logged
Airguns Forever
2013 Starling count: 13, Grackel count: 02
2012 Starling count: 16, Grackel count: 01, Mouse count: 3
2011 Starling count: 38
Xraycer
GTA Senior Contributor
Posts: 17257
Black Guns Matter
Real Name: Dinh
Re: LP 8 disassembly photos
«
Reply #4 on:
August 27, 2018, 04:28:25 PM »
Excellent job, Don!
Logged
